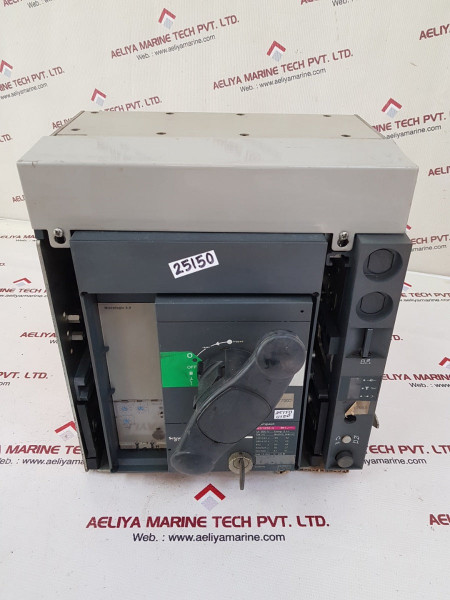

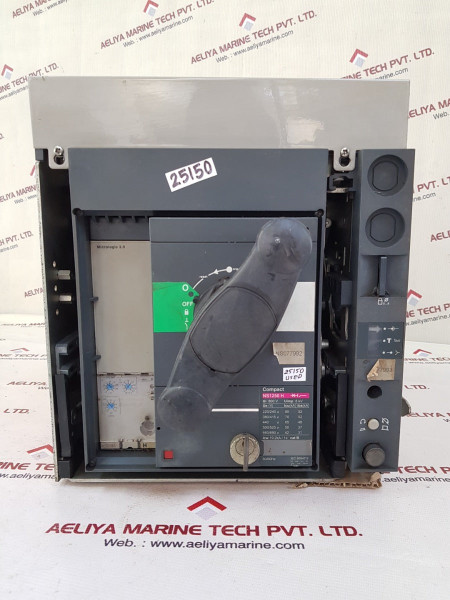

Schneider Electric Micrologic 2.0 Compact Ns1250 H Circuit Breaker 1250A 50/60Hz
schneider electric
micrologic 2.0
ns077992
compact
ns1250
| Specification | Details |
|---|---|
| Product Name | Schneider Electric Compact NS1250 H Micrologic 2.0 Circuit Breaker |
| Brand | Schneider Electric |
| Model | Micrologic 2.0 |
| Part Number | NS077992 |
| Series | Compact NS1250 H |
| Ui | 800 V |
| Uimp | 8 kV |
| Ue | 220/240 V, 380/415 V, 440 V, 500/525 V, 660/690 V |
| Icu | 85 kA (220/240 V), 70 kA (380/415 V), 65 kA (440 V), 50 kA (500/525 V), 42 kA (660/690 V) |
| Ics | 52 kA (220/240 V), 52 kA (380/415 V), 48 kA (440 V), 37 kA (500/525 V), 31 kA (660/690 V) |
| Icw | 19.2 kA / 1s, Category B |
| Frequency | 50/60 Hz |
| Standards | IEC 60947-2 |
| Rated Current (In) | 1250 A |
| Weight | 32 kg |
The Schneider Electric Compact NS1250 H Micrologic 2.0 Circuit Breaker, designed to safeguard electrical systems with precision and efficiency. Manufactured by Schneider Electric, a global leader in energy management and automation, this circuit breaker combines robust performance with user-friendly features.
The Compact NS1250 H features Micrologic 2.0 technology, ensuring responsive protection against electrical faults across a wide range of voltages. With a UI rating of 800V and Uimp surge endure capacity of 8 kv, it delivers dependable performance in various industrial and commercial conditions. Designed to meet IEC 60947-2 standards, it offers reliability and compliance essential for modern electrical installations. Ideal for applications demanding high current handling, the NS1250 H supports a maximum current rating of 1250A, making it suitable for medium to large-scale electrical systems. Its compact design and manageable weight of 32 kg facilitate ease of installation and maintenance, reducing operational downtime and enhancing overall system efficiency.
Manufactured for durability and safety, this circuit breaker boasts impressive breaking capacities, including ICU (kA) and ICS (kA) ratings customized to various voltage levels. For instance, it offers ICU ratings of 85 kA at 220/240V, 70 kA at 380/415V, and 42 kA at 660/690V, ensuring robust protection against short circuits and overloads. The NS1250 H Micrologic 2.0 Circuit Breaker operates seamlessly on both 50Hz and 60Hz frequency grids, accommodating global electrical standards without compromising performance. Its ICW rating of 19.2 kA for 1 second (Cat B) underscores its ability to handle intense electrical disturbances, safeguarding equipment and personnel alike.
Schneider Electric Compact NS1250 H Micrologic 2.0 Circuit Breaker for better reliability and performance in your electrical infrastructure. Whether used in industrial plants, commercial buildings, or critical facilities, it promises consistent protection and operational efficiency.
