Schneider Electric Nsx 250 F Moulded Case Circuit Breaker Lv431770
Schneider Electric India Pvt. Ltd.,
Merlin Gerin
Moulded Case Circuit Breaker
Compact Nsx
Nsx 250 F
| Item | Details |
|---|---|
| Product | Schneider Electric NSX 250 F Moulded Case Circuit Breaker |
| Manufacturer | Schneider Electric India Pvt. Ltd. |
| Brand | Merlin Gerin |
| Type | Moulded Case Circuit Breaker |
| Series | Compact NSX |
| Model | NSX 250 F |
| Rated Voltage (Ui) | 800 V |
| Impulse Voltage (Uimp) | 8 kV |
| Frequency | 50/60 Hz |
| Category | Cat: A |
| IEC/EN Standard | IEC/EN 60947-2 |
| Current Range | 100/250 A |
| Type/Model Variants | NSX 100-160-250 F/HA |
| Tripping Current | 125% |

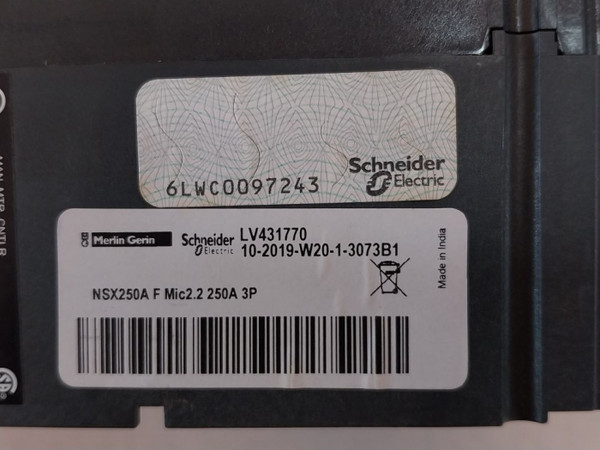

| Technical Code | 6LWC0097243 |
| Part Number | LV431770 |
| Micrologic Specification | NSX250A F Mic2.2 3P |
| Additional Part Number 1 | 00994153C |
| Additional Part Number 2 | 00994076C |

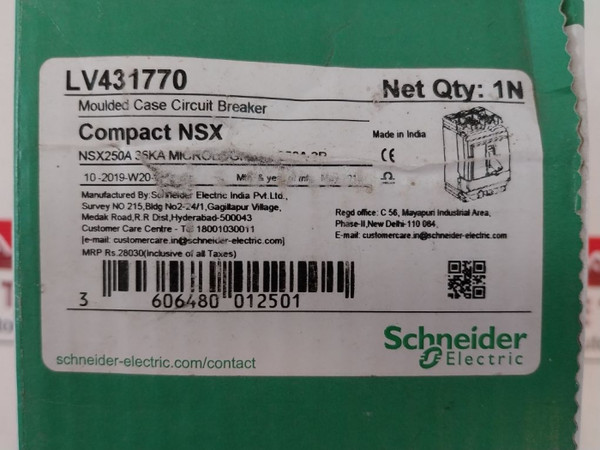

| Barcode | 3 606480 012501 |
| Country of Manufacture | Made in India |
| Weight | 2.020 Kg |
The NSX 250 F Schneider Electric moulded case circuit breaker LV431770 provides high-performance circuit protection to various applications used in industries and commercial fields. The company that has manufactured this compact circuit breaker is Schneider Electric India Pvt. Ltd., which has given it a brand name called Merlin Gerin. The NSX series of compact circuit breakers offers quality design to achieve superior performance, safety, and reliability in electrical distribution systems.
Its voltage rating (Ui) of 800V and short-circuit withstand rating of Uimp = 8 kV ensure robust protection in case of electrical faults. The rated current is 100/250 A, ensuring that the circuit breaker corresponds to the IEC/EN 60947-2 standard; it means a very high safety and reliability criterion. Circuit breaker operates efficiently on 50Hz and 60Hz systems, while giving flexibility in all applications.
The NSX 250 F weighs 2.020 kg and has manufactured the NSX 250 F from India. It is designed for simple installation in addition to easy integration into existing systems, therefore making it a trusted choice for professionals concerned with dependable circuit protection solutions.
1. High Voltage Rating : Its maximum rated voltage is 800V suitable for several electrical pplications.
2. Short Circuit Withstand Rating : Uimp of 8 kV ensures withstanding short circuiting condition.
3. Versatile Current Ratings : The rated current is 100/250 A to meet different load requirements.
4. Compact Design : Designed to be installed in most space constrained environments.
5. Frequency Compatibility : Suitable for both 50Hz and 60Hz electrical systems.
6. Durable Construction : The engineering is such as to withstand demanding conditions of industrial use, ensuring long-term reliability.
7. Quality Assurance : Schneider Electric is a market leader of top quality electrical solutions, and is manufactured by the same.
8. Light Weight Design : Weighs just 2.020 kg for easy handling and installation.
9. Safety Compliance : IEC/EN 60947-2 compliant guarantees safety and reliability.
10. Tripping Current : Tripping Current at 125 % of custom protection.
1. Industrial Electrical Systems : Applied in industrial factories and manufacturing establishments to safeguard circuits.
2. Commercial Buildings : Used in electrical distribution panels to ensure reliability and safety.
3. Data Centers : Implemented in critical power systems for assured service.
4. Renewable Energy Systems : Applied in solar and wind energy systems for efficient circuit control.
5. HVAC Equipment : Applied in heating, ventilation, and air-conditioning systems to effectively manage circuits in plants.
6. Pumping Stations : Used in water and wastewater treatment stations to obtain surety of operation.
7. Process Control Systems : They are used in the process industries, maintaining ideal operating conditions of the process.
8. Marine Applications : They are used to provide an electrical safety protection system for shipboard electrical systems.
9. Construction Equipment : Heavy machinery uses electrical protection
10. Transportation Systems : Applied to railway and public transport systems for safety.
Ensure dependable circuit protection with the Schneider Electric NSX 250 F Circuit Breaker (LV431770). Like Related Products Reach out to Aeliya Marine today for more details and customized solutions!
