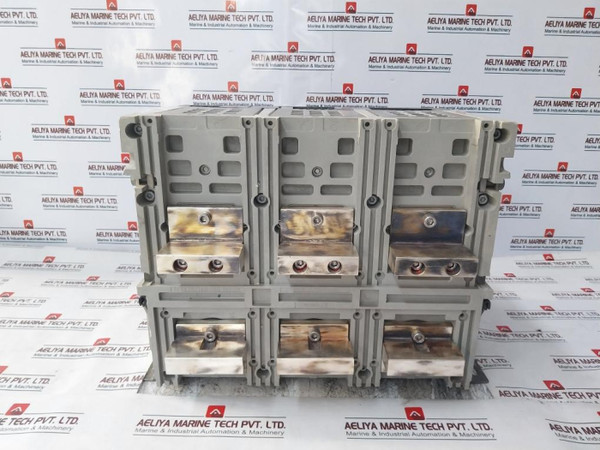

Schneider Electric Nw25 H1 Masterpact Circuit Breaker 2500 Amp

No reviews yet Write a Review
$3,989.99
Condition:
Used
SKU:
127358
Shipping:
Free Shipping
Quantity Type:
PCS
Short Description:

Schneider Electric Nw25 H1 Masterpact Circuit Breaker 2500 Amp
Schneider Electric
Merlin Gerin
Ecofit
Micrologic 5.0E

Get a Quote
5 customers are viewing this product
Specification Details
Product Name Schneider Electric Nw25 H1 Masterpact Circuit Breaker 2500 Amp
Brand Schneider Electric
Sub-Brand Merlin Gerin
Product Line Ecofit
Trip Unit Micrologic 5.0E
Series Masterpact
Model Nw25 H1
Ui 1000V
Uimp 12kV
Ue (V) 220/440~, 480/690~
Icu (Ka) 65
Ics 100% Icu
Icw 65Ka/1S
Category Cat.B
Standard IEC 60947-2
Frequency 50/60 Hz
Application AC23A
Operating Voltage 690V
Rated Current (Ie) 2500A
Standard 2 IEC 60947-3
Rated Current (In) 2500A
Serial Number 3N16345
Product Code 02 56
Frame Type H1
Reference Number N˚ 20205365226
Part Code 380
Catalog Reference Gcr_Pp_Nw_Cb
Control Voltage (MCH) 200-240 Vac
Control Voltage (MX) 200-250 Vac/Vdc
Control Voltage (XF) 200-250 Vac/Vdc
Installation Plug & Play
Order Number N˚ 10988
Control Unit Mn/Mx2 Mx1
Accessory Xf
Part Number 51066621A
Production Region N Moyen/ N Medium: 3
Manufacturing Code A 16173
Component Number 161735106662101004207430
Actuator Mch/Xm Motor Mechanism
Control Voltage 200-240 Vac
Frequency Range 50-60-400Hz
Identification Code 47894
Additional Code 016343478 49
Batch Number A 16343 038H
Engineering Number E 103955
Product Code 2 33662
Specification Code 04441662Ea
Unit Type Circuit Breaker Trip Unit
Product Code 3 E161835
Batch Code E63335
Product Code 4 47602
Serial Number 2 3N16345
Spare Part Use Schneider Part 33593
Product Code 5 51066271
Additional Code 2 38H
Batch Code 2 1617351066271
Control Unit 2 Mx-xf/Sht-shc
Control Voltage 2 200-250 Vac-dc
Serial Number 3 3N16323
Product Code 6 33662
Country of Origin Made in France
Weight 51 Kg

The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp is a robust solution designed to ensure efficient power distribution and management in industrial contexts. As a key component in Schneider Electric's Masterpact range, this circuit breaker offers exceptional performance and reliability, making it suitable for various applications where high-current protection is essential. With a rated current of 2500 amps, it effectively safeguards electrical circuits against overloads and short circuits, thereby enhancing the overall safety and operational continuity of electrical systems. This circuit breaker is designed to meet the demanding requirements of modern industrial services, providing reliable protection without compromising on efficiency. Its advanced design incorporates innovative technologies that optimize performance and minimize downtime. The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp features a compact track, making it ideal for installations where space is limited. Its modular structure allows for easy integration into existing electrical systems, ensuring seamless operation and maintenance.



H1 Circuit Breaker

Key Functionalities of Nw25 H1 Circuit Breaker


1. It is equipped with advanced protection mechanisms including adjustable trip settings and complicated monitoring capabilities, which enable precise management of electrical loads. This ensures optimal performance under varying operational conditions, enhancing both safety and efficiency.
2. The circuit breaker is designed for durability and longevity, capable of withstanding harsh environmental conditions and heavy-duty usage typical in industrial contexts. Its robust construction and high-quality materials contribute to its reliability, making it a trusted choice for critical applications where downtime is not an option.
3. The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp incorporates smart technology that supports remote monitoring and diagnostics. This feature allows operators to monitor the breaker's performance in real-time, detect potential issues early, and take proactive maintenance measures. Such capabilities reduce operational risks and maintenance costs, ensuring uninterrupted power supply to essential equipment and processes.

Applications

The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp finds wide-ranging applications across various industries. In manufacturing plants, it serves as a crucial component in electrical distribution systems, protecting machinery and equipment from electrical faults while maintaining operational efficiency. Its high interrupting capacity ensures reliable performance even in high-demand environments, safeguarding production processes from disruptions. In commercial buildings and data centers, where continuous power supply is crucial, this circuit breaker provides essential protection for sensitive equipment and systems. Its ability to handle large currents and its adaptive features make it well-suited for ensuring stable electricity distribution and preventing downtime due to electrical faults. Moreover, in renewable energy installations such as solar farms and wind turbines, the Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp plays an important role in managing and protecting electrical connections. Its robust design and advanced protection features contribute to the safe and efficient operation of renewable energy systems, supporting sustainable energy generation practices.

For those looking for more information on high-capacity circuit breakers, this product, the Schneider Electric Masterpact NW25 H1 Circuit Breaker 2500A , offers robust performance and advanced protection features, making it an ideal choice for demanding electrical applications.
