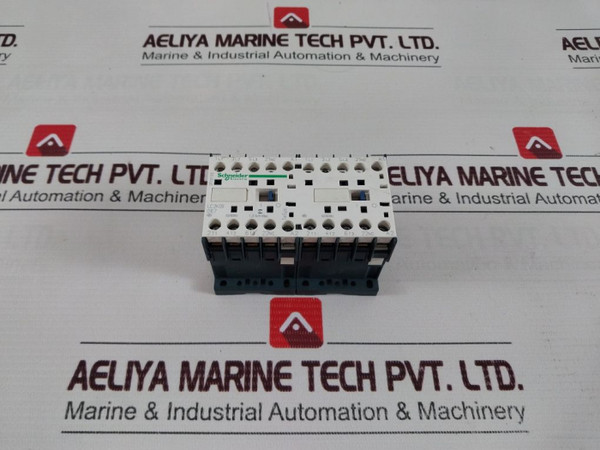

Schneider Electric/Telemecanique Lc2K0901E7 Contactor 48V 50/60Hz
Schneider Electric
Telemecanique
Tesys
Lc2K0901E7
48V
50/60Hz
Ith/Continuous Current: 20A
Ui: 690V
Uimp: 8Kv
| Attribute | Description |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Telemecanique |
| Series | Tesys |
| Model | LC2K0901E7 |
| Voltage | 48V, 50/60Hz |
| Continuous Current (Ith) | 20A |
| Insulation Voltage (Ui) | 690V |
| Impulse Withstand Voltage (Uimp) | 8kV |
| Standards | IEC/EN 60947-4-1 IEC/EN 60947-5-1 JIS C8201-4-1 JIS C8201-5-1 |
| Maximum Voltage | 600V |
| Max Short Circuit Current RMS Rating | 5kA, 600V |
| Contact Ratings | A600 Q600 |
| Torque | 7 lbs in. |
| Wire Gauge | AWG 12-18 Cu |
| Temperature Rating | 60/75°C |
| Part Numbers | 2F10132, 10131 |
| Additional Codes | E7, 9010104870000313, W91379182 0181 A11 |
| Origin | Made in France |
| Weight | 350 gm |
The TeSys contactors from Schneider Electric include the LC2K0901E7, which is robust and efficient. They allow controlling electrical circuits efficiently in industrial and commercial applications. The contactors have continuous current ratings of 20A, operate at 690V, and provide high reliability for motor control and switching. Equipped with a 48V AC coil, the LC2K0901E7 meets international standards such as those of IEC/EN 60947-4-1 for superior safety and performance. This compact and rugged contactor, weighing 350 grams, is manufactured in France and trusted for versatile use in demanding environments.
1. High Voltage Capacity : Supports up to 690V Ui with a rated impulse withstand voltage of 8kV (Uimp).
2. Continuous Current Rating : Supports a maximum Ith of 20A for motor control and industrial circuits.
3. Compact and Lightweight : Weighs only 350 grams for easy installation in tight spaces.
4. Coil Voltage Compatibility : Operates with a 48V AC coil at 50/60Hz.
5. Short Circuit Protection : Supports a short-circuit current of 5kA at 600V for added safety.
6. Durable Construction : Rugged for industrial environments with a torque rating of 7 lbs-in.
7. International Standards Compliance : Meets IEC/EN 60947-4-1, IEC/EN 60947-5-1, JIS C8201-4-1, and JIS C8201-5-1 standards.
8. Temperature Resistance : Robust operation in the range of 60/75°C.
9. Versatile Application Range : Designed for use with AWG 12-18 Cu wire types.
10. Trusted Brand : Leveraging Schneider Electric's leading reputation for innovation and quality.
1. Motor Control : The applied powers and protects motors within industrial and commercial systems.
2. Industrial Automation : Controls electrical circuits in automated manufacturing lines.
3. Power Distribution : Reliable switching in energy distribution systems.
4. HVAC Systems : Supports control in heating, ventilation, and air conditioning setups.
5. Renewable Energy : Operates in solar and wind power generation systems.
6. Marine Applications : Controls electrical circuits in shipboard systems.
7. Pumping Systems : Improves operation in water and fluid transfer systems.
8. Material Handling : Supports conveyors and automated material movement systems.
9. Building Automation : It is integrated into smart energy and lighting systems.
10. Testing and R&D Labs : Facilitates controlled switching in experimental setups.
Ensure efficient and reliable electrical control with the Schneider Electric LC2K0901E7 Contactor. For related products, click here. Contact Aeliya Marine today for expert advice and fast delivery!
