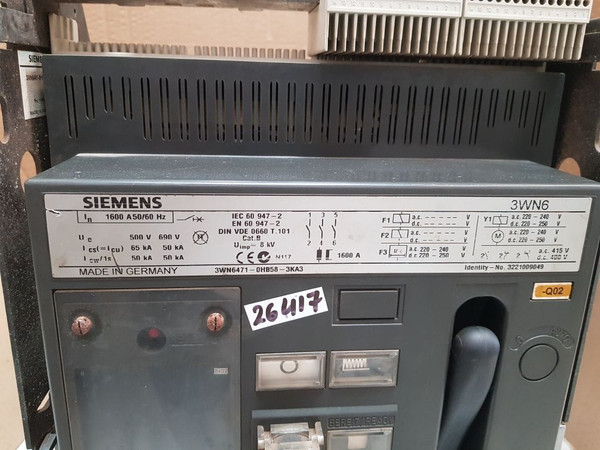

Siemens 3Wn6471-0Hb58-3Ka3 Circuit Breaker 1600A 50/60Hz 690V
siemens
3wn6471-0hb58-3ka3
3wn6
identity-no. 3221009049
in = 1600 a 50/60hz
| Specification | Details |
|---|---|
| Product Name | Siemens 3Wn6471-0Hb58-3Ka3 Circuit Breaker 1600A 50/60Hz 690V |
| Brand | Siemens |
| Model Number | 3wn6471-0hb58-3ka3 |
| Series | 3WN6 |
| Identity Number | 3221009049 |
| Rated Current (In) | 1600A 50/60Hz |
| Ue | 500V, 690V |
| Ics/Icu | 65kA, 50kA |
| Icw/1s | 50kA |
| Standards | IEC 60 947-2, EN 60 947-2, DIN VDE 0660 T.101 |
| Category | B |
| Impulse Withstand Voltage (Uimp) | 8kV |
| AC Voltage Ratings | 220-240V, 415V |
| DC Voltage Ratings | 220-250V, 400V |
| Origin | Made in Germany |
| Weight | 66 Kg |
The Siemens 3WN6471-0HB58-3KA3 Circuit Breaker is manufactured to deliver better protection and reliability for a wide range of industrial applications. With a rated current (In) of 1600A and a voltage rating (Ue) of 690V, this circuit breaker is built to handle the demands of electrical systems. Designed to meet the standards of IEC 60 947-2, EN 60 947-2, and DIN VDE 0660 T.101, it ensures consistent performance and safety in high-stakes conditions. The Siemens 3WN6471-0HB58-3KA3 is part of the 3WN6 series, known for its robust construction and advanced features, making it an ideal choice for industries that require dependable circuit protection. The circuit breakers short-circuit breaking capacity (Ics/Icu) is an impressive 65kA at 500V and 50kA at 690V, providing robust protection against over currents and short circuits. This high interrupting capacity ensures that your electrical systems remain safeguarded against faults that could otherwise lead to significant downtime or damage. Additionally, the circuit breaker boasts a rated short time withstand current (Icw) of 50kA for 1 second, reinforcing its ability to endure and operate under fault conditions without compromising its structural integrity. Such features are critical for maintaining operational continuity in industrial contexts, where equipment reliability is crucial.
The Siemens 3WN6471-0HB58-3KA3 also supports various operational voltages, making it versatile for different electrical configurations. It operates effectively in AC voltage ranges of 220-240V and 415V, as well as DC voltage ranges of 220-250V and 400V. This adaptability allows it to be integrated seamlessly into various electrical systems, ensuring optimal performance regardless of the specific voltage requirements. Furthermore, the circuit breaker has an impulse withstand voltage (Uimp) of 8kV, enhancing its ability to withstand transient over voltages and providing an additional layer of protection for sensitive electrical components. Manufactured in Germany, the Siemens 3WN6471-0HB58-3KA3 embodies the high-quality manufacturing and precision that Siemens is renowned for. Whether deployed in manufacturing plants, power distribution networks, or other industrial conditions, this circuit breaker delivers consistent performance and longevity. Its design and construction ensure that it can withstand the rigors of continuous operation, providing composure to operators and maintenance personnel alike.
The Siemens 3WN6471-0HB58-3KA3 Circuit Breaker stands out as a reliable solution for industrial circuit protection. Its high current and voltage ratings short-circuit breaking capacity, and versatile operational voltage support makes it an ideal choice for a wide range of applications. This circuit breaker ensures that your electrical systems remain protected and operational, minimizing the risk of downtime and maximizing productivity. Whether you are upgrading existing systems or designing new installations, this circuit breaker offers the reliability and performance you need to keep your operations running smoothly.
When considering industrial circuit breakers with robust specifications like the Siemens 3WN6471-0HB58-3KA3, which boasts a high current rating of 1600A and a voltage rating of 690V, it's essential to explore similar products that meet similar operational demands. These circuit breakers are designed to ensure reliable protection against overcurrents and short circuits, adhering to international standards like IEC 60 947-2 and EN 60 947-2. Their versatility in supporting various AC and DC operational voltages, along with their high short-circuit breaking capacity of 65kA at 500V and 50kA at 690V, makes them ideal choices for industries requiring robust and dependable electrical protection. Explore here Siemens 3Wn6471-0Hb58-3Ka3 Circuit Breaker 1600A 690V 50/60Hz .
