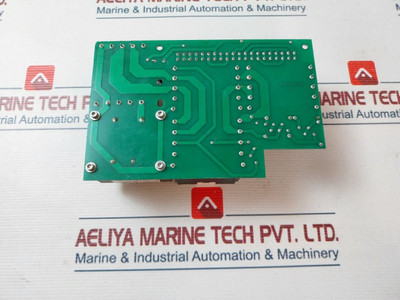

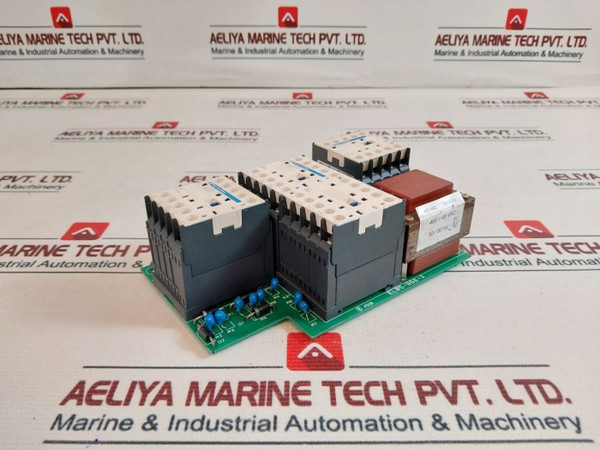

Telemecanique El05-966-2 Control Board 460 Vac 50/60Hz

No reviews yet Write a Review
$549.99
Condition:
Used
SKU:
79788
Shipping:
Free Shipping
Quantity Type:
PCS
Short Description:

Telemecanique El05-966-2 Control Board 460 Vac 50/60Hz
Telemecanique
Schneider Electric
El05-966-2
Lc1K09 0085E7
2F0816 0
48V 50/60Hz

Get a Quote
5 customers are viewing this product
Specification Details
Product Name Telemecanique El05-966-2 Control Board 460 Vac 50/60Hz
Brand Telemecanique
Manufacturer Schneider Electric
Model El05-966-2
Component Lc1K09 0085E7
Part Number 2F0816 0
Voltage 48V 50/60Hz
Alternate Component Lc2K09 015E7
Alternate Part Number 2F08161
Operating Voltage 460 Vac 50/60Hz
Reference Numbers 101109, 49288
Component 2 Lc1K09 105E7
Part Number 2 2F08165

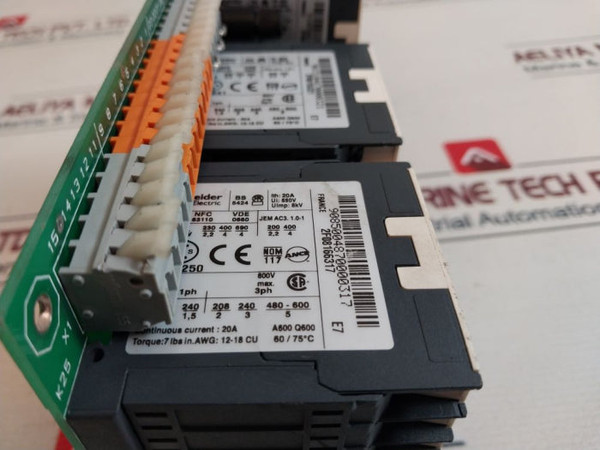

Standards Bs 5424, Nfc 63110, Vde 0660, Jem Ac3.1.0-1
Rated Insulation Voltage (Ui) 690V
Impulse Withstand Voltage (Uimp) 8Kv
Maximum Voltage 600V
Continuous Current (Ith) 20A
Torque 7 Lbs In.
Wire Size (AWG) 12-18 Cu
Contact Rating A600 Q600
Temperature Rating 60/75°C
Serial Number 9085004870000317, 9085004870000309
Part Numbers (E7 Suffix) 2F08166317 E7, 2F08165309 E7
Country of Origin France
Weight 1.840 Kg

Versatile EL05-966-2 Control Board



Telemecanique EL05-966-2 Control Board is a universal and reliable component for most industrial applications. Schneider Electric manufactured this control board and is rated at 460 Vac with a 50/60 Hz system. LC1K09 and LC2K09 series feature a number of remarkable specifications. These include 20A continuous current and 690V maximum operating voltage. The basic characteristics include withstanding short-circuit strength of up to 8kV, thus highly reliable for the most demanding environments. Provided control boards are compliant with international standards like NFC 63110, VDE 0660, and BS 5424.

reliable component for most industrial applications

The Telemecanique EL05-966-2 Control Board is made for easy installation and usage. Its torque specification is 7 lbs-in, which can allow the accommodation of wire size from AWG 12 to 18 in copper. The product weighs 1.840 kg and is light but robust enough to allow for flexible positioning within control panels. The operational range also supports ambient temperatures of 60/75°C. This Control Board is engineered for better performance and effectiveness whether it is used in motor control circuits or automation systems. Quality and innovation, as guaranteed by Schneider Electric, for the EL05-966-2 Control Board.

For those seeking reliable control solutions, the Telemecanique El05-966-2 Control Board 460 Vac 50/60Hz is an excellent choice, designed to ensure optimal performance in various applications. To complement this control board, consider the Telemecanique Vw3A66402 Line Filter 16A Converter Input 460 Vac 50/60Hz 3 Phase, which enhances system stability by filtering out electrical noise and improving overall efficiency. This pairing provides a robust solution for managing electrical systems effectively.
