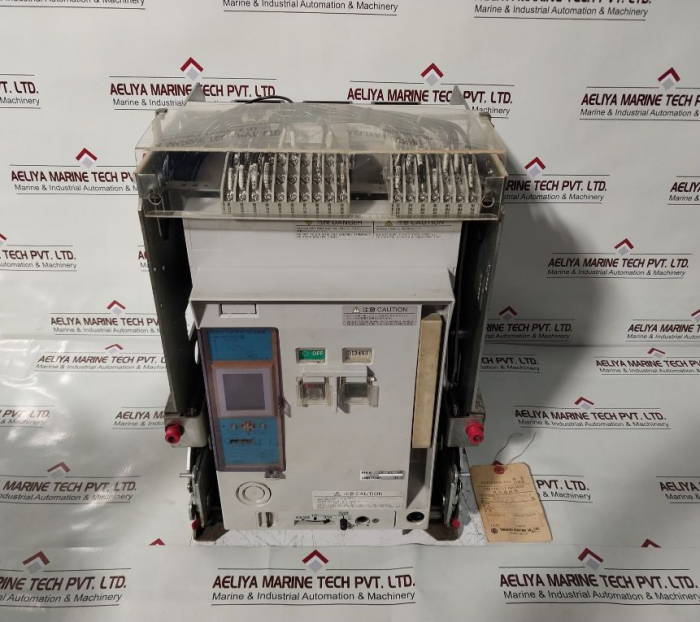

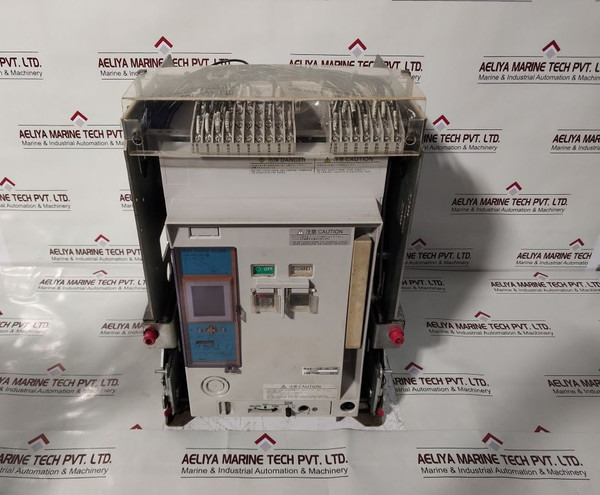

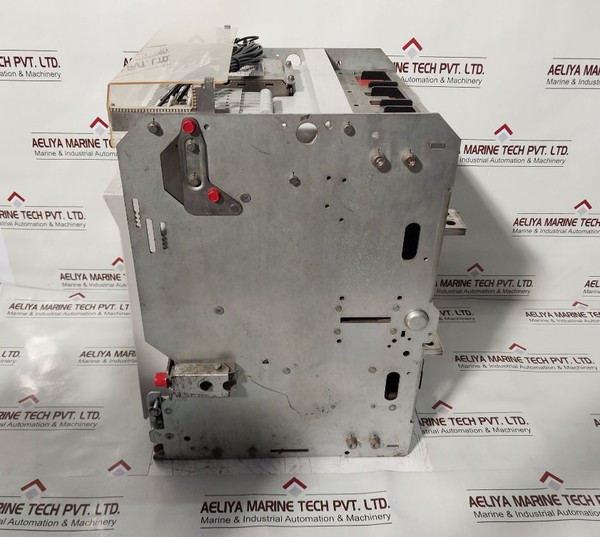

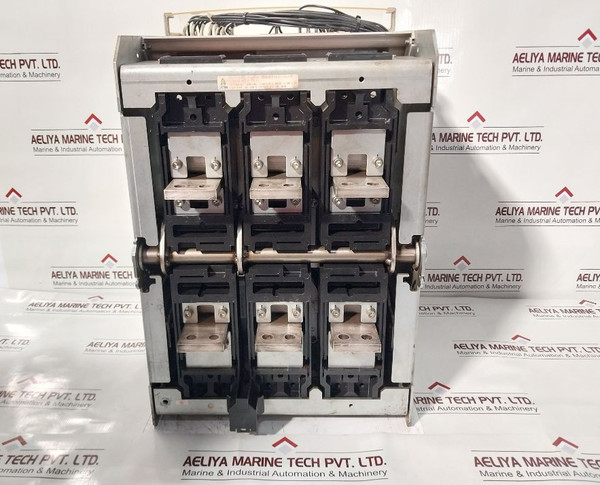

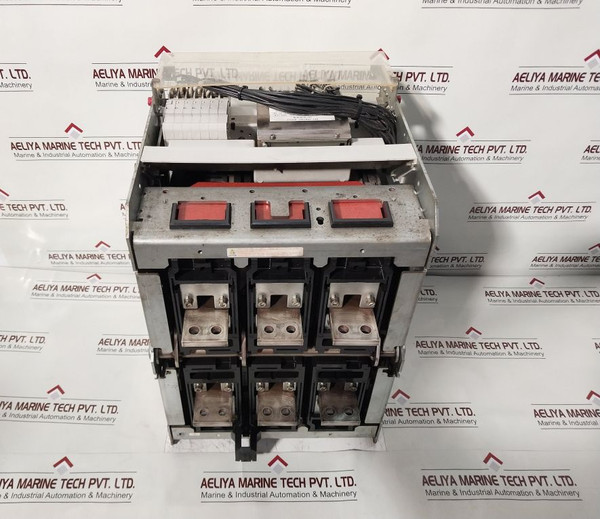

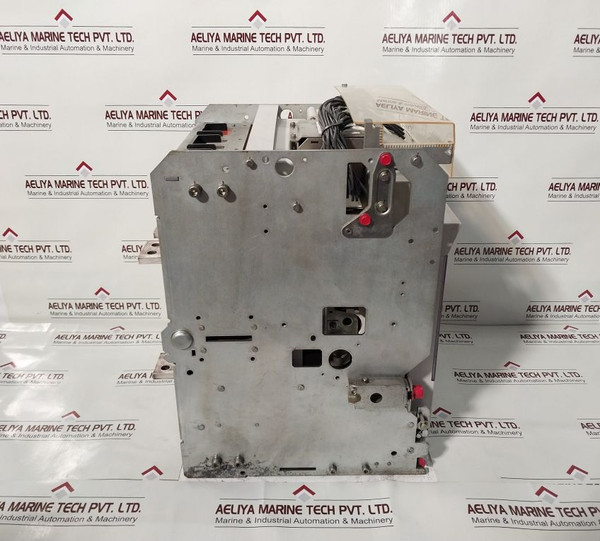

Terasaki Ar208S Air Circuit Breaker 800Amp Agr-22Bs-pr
Terasaki Electric Co., Ltd.
Air Circuit Breaker
Type: Ar208S

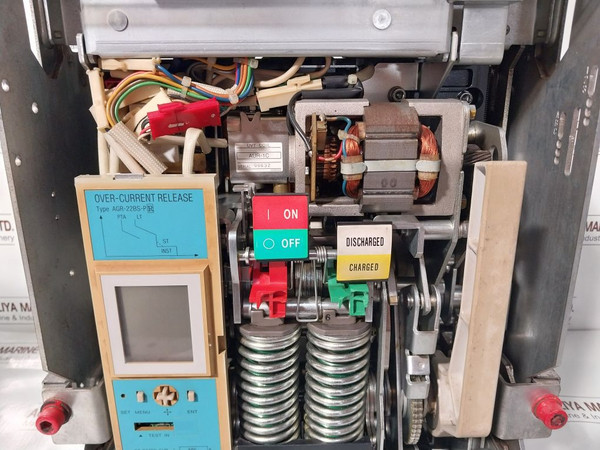

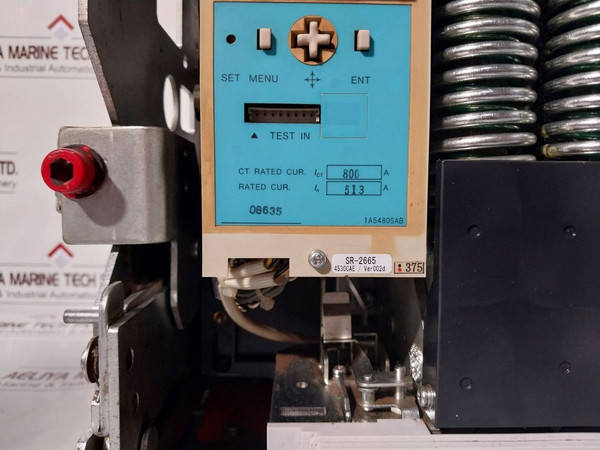

Over-current Release
Type: Agr-22Bs-pr
Ct Rated Cur. Ict 800A
Rated Cur. In 513A
1A5480Sab
| Specification | Details |
|---|---|
| Product Name | Terasaki Ar208S Air Circuit Breaker 800Amp Agr-22Bs-pr |
| Manufacturer | Terasaki Electric Co., Ltd. |
| Type | Ar208S |
| Over-current Release Type | Agr-22Bs-pr |
| Ct Rated Current (Ict) | 800A |
| Rated Current (In) | 513A |

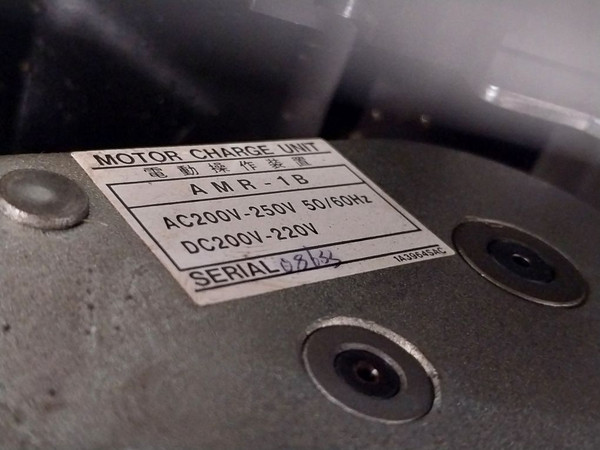

| Motor Charge Unit | Amr-1B |
| AC Voltage | 200V-250V 50/60Hz |
| DC Voltage | 200V-220V |
| Uvt Control Device Type | Aur-1Cd |
| Voltage (50/60Hz) |
09-08: 200V 09-18: 220V 09-28: 240V |

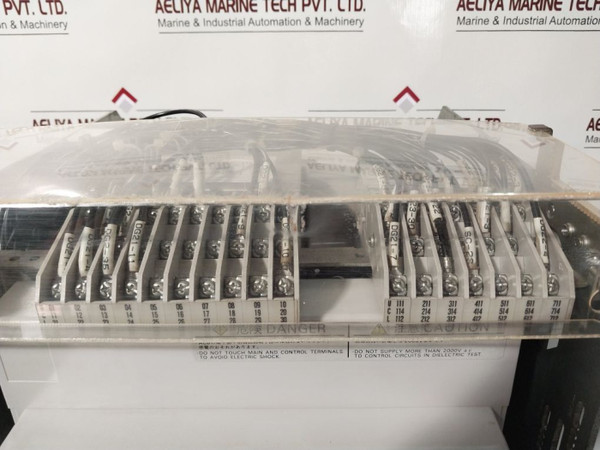

| Auxiliary Switch Unit | Axr-007 |

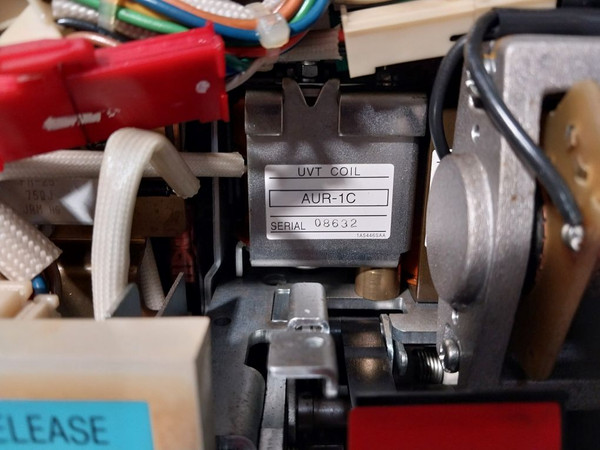

| Uvt Coil Type | Aur-1C |
| Weight | 70.050 Kg |
| Additional Codes |
1A5480Sab Sr-2665 4530Cae/Ver 002D 1A3964Sac 1A5446Saa 1A5448Saa 1A2840Saa 1A5446Saa |
| Origin | Japan |
At its core, the AR208S is rated at 800A, with a CT rated current (Ict) of 800A and a nominal current (In) of 513A. This ensures it can handle high current loads efficiently, safeguarding electrical systems against overloads and short circuits. Equipped with the AGR-22BS-PR over-current release mechanism, it offers precise trip characteristics, allowing for customized protection settings to match specific operational needs. The versatility of the AR208S is underscored by its motor charge unit (AMR-1B), supporting AC voltage inputs from 200V to 250V at 50/60Hz and DC inputs from 200V to 220V. This feature enhances its adaptability across various power distribution setups, making it suitable for both domestic and international installations where different voltage standards may apply.
Terasaki has integrated innovative control technology into the AR208S, including the UVT control device (type: AUR-1CD), which operates seamlessly across multiple voltage settings (200V, 220V, 240V) at 50/60Hz. This enhances operational flexibility and reliability, ensuring consistent performance in diverse electrical conditions. The AR208S also includes auxiliary switch units (AXR-007) and UVT coils (AUR-1C), which further enhance its functionality and integration capabilities within complex electrical systems. These components facilitate remote operation and monitoring, enabling efficient management of power distribution networks and enhancing overall system reliability.
Weighing 70.050 kg, the AR208S is constructed with durability in mind, featuring robust materials and particular craftsmanship that meet rigorous quality standards. This ensures longevity and reliability, even in harsh industrial contexts where resilience to environmental factors is crucial. Manufactured in Japan, each AR208S breaker undergoes particular testing and quality assurance procedures to meet Terasaki harsh performance and safety criteria. This assurance to excellence is reflected in its adherence to international standards and certifications, ensuring compliance with regulatory requirements across global markets.
The Terasaki AR208S Air Circuit Breaker 800Amp AGR-22BS-PR represents a top of reliability and innovation in electrical protection technology. Whether deployed in manufacturing plants, commercial facilities, or critical infrastructure installations, it delivers unparalleled performance, safety, and durability. With advanced features such as precise over-current release mechanisms, versatile voltage compatibility, and robust construction, the AR208S stands as a testament to Terasaki Electric Co., Ltd.'s leadership in the field of electrical engineering and commitment to customer satisfaction.
If you’re exploring robust protection solutions for high-current applications, you may also find interest in this product the Terasaki Tempower 2 AGR-11L-AL 3-Pole Air Circuit Breaker 3200A . This circuit breaker, like the Terasaki AR208S Air Circuit Breaker 800A AGR-22BS-PR, offers reliable performance in demanding environments. With its capacity and advanced protection features, the Tempower 2 is an excellent choice for high-amperage applications where safety and reliability are dominant.
