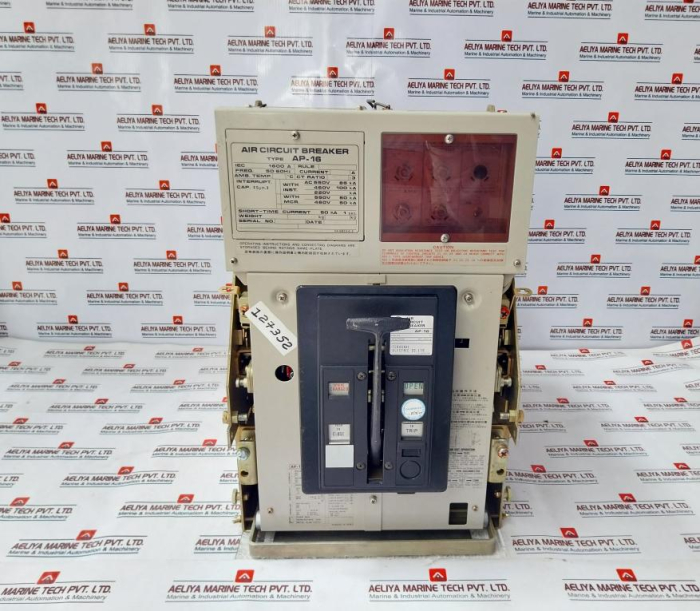

Terasaki Electric Ap-16 Air Circuit Breaker 1600A

No reviews yet Write a Review
$3,300.00
Condition:
Used
SKU:
127352
Shipping:
Free Shipping
Quantity Type:
PCS
Short Description:

Terasaki Electric Ap-16 Air Circuit Breaker 1600A
Terasaki Electric Co., Ltd.
Air Circuit Breaker
Accessories
Type: Ap-16
Iec 1600A

Get a Quote
5 customers are viewing this product
Specification Details
Product Name Terasaki Electric Ap-16 Air Circuit Breaker 1600A
Manufacturer Terasaki Electric Co., Ltd.
Type Air Circuit Breaker
Accessories Type: Ap-16
Rated Current IEC 1600A
Frequency 50/60Hz
Interrupting Capacity (Symmetrical) With Inst.: AC 550V 85kA, 460V 100kA, 220V
With Mcr.: AC 550V 50kA, 460V 50kA
Short-time Current Rating 50kA for 1 second
Model Numbers Ha-6833-6-2, Ta 5343-3-1, Ha-7531-1-1
Poles 3
Voltage AC 660V
Auxiliary Devices P|B| Manual Stored |C|
Overcurrent Relay Aoj-1Sc-b/ Isc-b |B|A|
Instantaneous Current Rating Io: 1000A |A|
Current Transformer Rating Ct: 1000A |A|
Instantaneous Current Setting 40kA |A|
Auxiliary Contacts 5A5B |A|
OCR Alarm 1A |B|
Interlock 1B |A|
Insulation Class F Class
Special Features SS: 507, SO: 940
Additional Specifications Ta-5273-1-4 P16
Overcurrent Trip Device Type: Aoj-1Lc-b
Frequency 50/60Hz
Long Time Delay Current Setting I1: 1000A
Delay Time T1: 6 s at 6 x I1
Short Time Delay Current Setting I2: 5000A
Delay Time T2: 270 ms
Base Current Selection Io: 1000A, 800A
DC Operating Voltage DC 24V
Additional Numbers Ta-4023-1-1, Ta-5265-1-2
Weight 87 kg

The Terasaki Electric AP-16 Air Circuit Breaker, designed by Terasaki Electric Co., Ltd. As a basis of industrial electrical systems, this breaker exemplifies advanced technology and robust manufacturing to ensure seamless operation and maximum safety in critical applications.



Ap-16 3-Pole Air Circuit Breaker 1600A


The AP-16 Air Circuit Breaker is exactly crafted to handle demanding environments, boasting a current rating of 1600A in accordance with IEC standards, making it ideal for installations requiring high-power distribution and protection. Operating at frequencies of 50Hz and 60Hz, it delivers consistent performance across diverse electrical grids worldwide. Key to its superior performance is its impressive interrupting capacity, capable of handling symmetrical faults with utmost efficiency. At AC voltages of 550V and 460V, it achieves interruption capacities of 85kA and 100kA respectively, ensuring swift and reliable circuit disconnection under fault conditions. For short-duration faults, its short-time current withstand capability of 50kA for 1 second provides essential protection during transient electrical disturbances.

Ap-16 3-Pole Air Circuit Breaker

Manufactured with precision, the AP-16 features a 3-pole configuration customized for AC voltages up to 660V, adhering to international standards such as IEC 5343-3-1 and IEC 7531-1-1 for enhanced reliability and safety. Its modular design includes a comprehensive range of accessories, including overcurrent trip devices like the AOJ-1LC-B equipped with long- and short-time delay settings to optimize protection settings customized to specific operational needs. In terms of operational flexibility, the breaker supports auxiliary functions with 5A5B contacts, enabling seamless integration into complex control systems. Safety features include OCR alarms and interlocks, ensuring operational integrity and preventing unauthorized access or unsafe conditions. Moreover, it complies with F-class insulation standards, guaranteeing thermal stability and durability in challenging industrial conditions.

Weighing 87 kg, the AP-16 is built for durability without compromising on performance, making it a reliable choice for critical applications where safety and efficiency are paramount. Its base current selection options of 800A and 1000A, alongside compatibility with DC 24V systems, further enhance its versatility across a wide range of industrial contexts. For industries requiring persistent reliability and better performance in electrical distribution and protection, the Terasaki Electric AP-16 Air Circuit Breaker stands as a testament to innovation.
