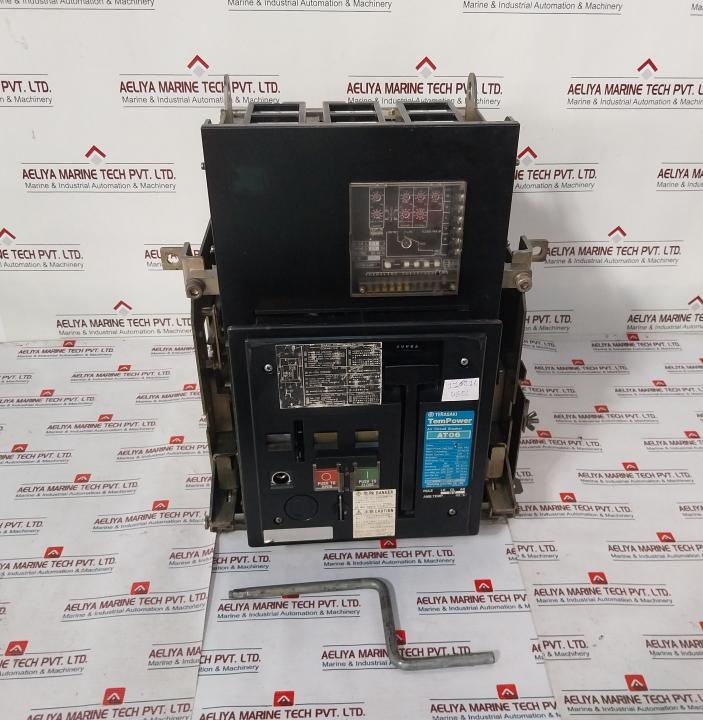

Terasaki Electric At06 Over-current Trip Air Circuit Breaker 690Vac 630A
Terasaki Electric Co., Ltd.
Tempower
Air Circuit Breaker
At06
Poles: 3
Operational Volt.: 690 Vac
Rated Frequency: 50/60Hz
| Specification | Details |
|---|---|
| Product Name | Terasaki Electric At06 Over-Current Trip Air Circuit Breaker 690Vac 630A |
| Manufacturer | Terasaki Electric Co., Ltd. |
| Series | Tempower |
| Type | Air Circuit Breaker |
| Model | At06 |
| Poles | 3 |
| Operational Voltage | 690 Vac |
| Rated Frequency | 50/60Hz |
| Rated Current | 630A |
| Standard | IEC947-2 |
| Utilization Category | B |
| Breaking Capacity (Ics) | 100% Icu |
| Short Time Withstand Current (Icw) | 1 Sec: 35kA, 3 Sec: 30kA |
| Product Code | ATPS0015-N |
| Ambient Temperature | 45°C |
| Trip Unit Type | Over-current Trip |
| Trip Unit Model | AOR-1BS-AS |
| Base Current (Io) | 314A |
| CT Rating (Ict) | 320/5A |
| Rated Frequency | 50-60Hz |
| Control Voltage (AC) | 100~250V |
| Control Voltage (DC) | 100~250V |
| Magnet Hold Trigger | ATT-1 |
| Auxiliary Switch | AXT-1C (2A 2B), BTXS0006-A, AXT-1AB (10P 5A 5B), RQU2312A1 |
| Position Switch | ALT-2PD, ALT-1PT |
| Accessories | Motor Charging (AC 230V), Under Voltage Trip (AC220V) |
| Serial Numbers | 05525870010, 02143-44 |
| Origin | Made in Japan |
| Weight | 78 kg |
The Terasaki Electric AT06 Over-current Trip Air Circuit Breaker is a high-performance electrical component designed by Terasaki Electric Co., Ltd., known for its reliability and efficiency. This air circuit breaker is part of the Tempower series, designed to provide robust protection for electrical systems in various industrial applications. It features a 3-Pole configuration and operates at 690V AC, making it suitable for high-voltage applications. With a rated current of 630A and compliance with the IEC947-2 standard, this circuit breaker ensures safety and performance in demanding conditions.
Key Features and Specifications
The Terasaki AT06 is designed to meet the needs of modern electrical systems with a rated frequency of 50/60Hz and an operational voltage of 690V AC. It can handle a base current of 314A and has a CT rating of 320/5A, ensuring accurate current measurement and protection. The breaker is built to withstand high short-time currents, with a capacity of 35kA for 1 second and 30kA for 3 seconds. This capability makes it highly reliable in protecting electrical circuits from short circuits and overloads. One of the standout features of the AT06 is its over-current trip functionality, configured as AOR-1BS-AS. This feature provides superior protection against electrical faults, ensuring the safety of both equipment and personnel. The breaker is equipped with auxiliary switches (Axt-1C and Axt-1AB), offering additional control and monitoring options. It supports a wide range of power inputs, both AC (100-250V) and DC (100-250V), enhancing its versatility and adaptability in various electrical systems.
The AT06 is designed for efficient operation and easy maintenance. It includes a motor charging mechanism with an AC voltage of 230V, ensuring that the breaker is always ready to perform when needed. The under-voltage trip feature, rated at AC220V, provides an additional layer of protection by ensuring that the breaker trips if the voltage drops below a certain level. The breaker also comes with position switches (ALT-2PD and ALT-1PT) and other accessories, making it easy to monitor and control its status. Manufactured in Japan, the Terasaki AT06 reflects the high-quality standards. With a weight of 78 kg, it is a solid and durable component built to last. The breaker operates reliably at an ambient temperature of 45°C, making it suitable for various industrial conditions. Its robust construction ensures long-term performance, minimizing the need for frequent replacements and reducing maintenance costs. The Terasaki AT06 is an ideal solution for protecting electrical systems in industrial contexts. It combines advanced features with robust construction, ensuring reliable performance and safety. Whether used in manufacturing plants, commercial buildings, or other high-voltage applications, this air circuit breaker provides the necessary protection to keep electrical systems running smoothly and safely.
The Terasaki Electric AT06 Over-current Trip Air Circuit Breaker is a high-quality, reliable, and efficient solution for protecting electrical systems in industrial applications. With its advanced features, robust construction, and compliance with international standards, it ensures the safety and performance of electrical circuits.
For a reliable and high-performance alternative, consider theTerasaki Electric At06 Tempower Air Circuit Breaker 630A . This breaker, similar to the Terasaki Electric At06 Over-Current Trip Air Circuit Breaker 690Vac 630A, offers robust protection and efficiency for your electrical systems, ensuring safety and compliance in various industrial applications.
