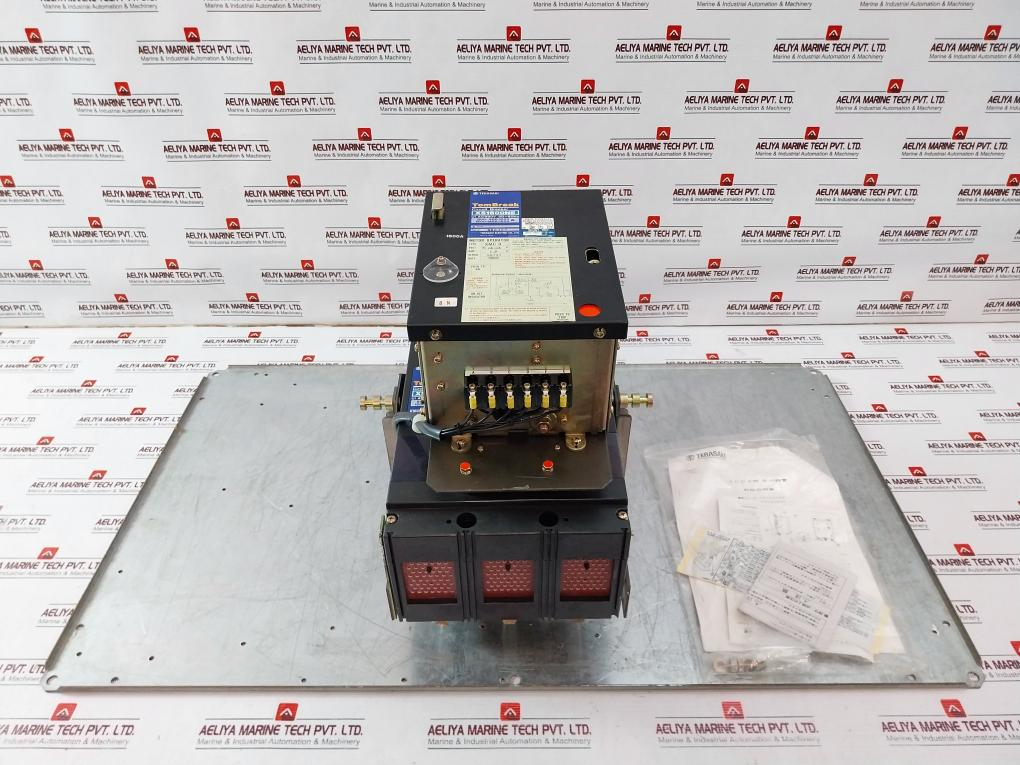

Terasaki Electric Xs1600Ne Circuit Breaker Xmc 9 Motor Operator 1600 A
Terasaki Electric Co.,Ltd
Tembreak
Circuit Breaker
Xs1600Ne
Ui Ac690V 50~60Hz
| Specification | Details |
|---|---|
| Product Name | Terasaki Electric Xs1600Ne Circuit Breaker Xmc 9 Motor Operator 1600 A |
| Manufacturer | Terasaki Electric Co., Ltd |
| Brand | Tembreak |
| Type | Circuit Breaker |
| Model | Xs1600Ne |
| Rated Operational Voltage (Ui) | AC690V, 50~60Hz |
| Rated Current (In) | 800A, 900A, 1000A, 1200A, 1400A, 1600A |
| Number of Poles | 3 Pole |
| Auxiliary Switch | 2H0757Saa/K |
| Auxiliary Switch Ratings | AC480V 3A, DC250V 0.3A AC250V 5A, DC125V 0.6A |
| Shunt Trip | 200-480V, 50/60Hz |
| Shunt Trip Model | 2H1023Sac |
| Motor Operator Type | Xmc 9 |
| Motor Operator Voltage | AC 100~115V |
| Motor Operator Amps | 1.0A |
| Standards | IEC947-2, BS, Nk (89T210) |
| Short-circuit Breaking Capacity | AC 500V, 85kA |
| Impulse Withstand Voltage | 20kA, 0.3sec |
| Country of Origin | Made in Japan |
| Weight | 39.500 kg |
The Terasaki Electric Xs1600Ne Circuit Breaker Xmc 9 Motor Operator 1600 A, Manufactured by Terasaki Electric Co., Ltd. This Tembreak series circuit breaker sets new standards in industrial power management, designed to excel in demanding conditions worldwide.
The Terasaki Electric Xs1600Ne boasts impressive specifications customized for industrial applications. Operating seamlessly within Ui Ac690V at 50~60Hz, it offers versatility across voltage ranges and frequencies. Available in multiple current ratings including 800, 900, 1000, 1200, 1400, and 1600 A configurations, it ensures adaptable performance to meet varied operational needs. Built for resilience, this 3-pole circuit breaker ensures dependable operation under challenging conditions. The 2H0757Saa/K auxiliary switch supports reliable signaling at Ac480V 3A and Dc250V 0.3A, while the Ac250V 5A and Dc125V 0.6A ratings ensure consistent performance across different power sources. A shunt trip feature, compatible with 200-480V at 50/60Hz (2H1023Sac), enhances safety protocols by enabling remote circuit interruption. Equipped with the advanced Xmc 9 Motor Operator, this breaker offers precise control with Volt Ac 100~115 V and Amp 1.0 A ratings, complying with IEC947-2 and BS standards. The NK (89T210) designation underscores its reliability under load, withstanding Ac 500V at 85Ka and a fault current capacity of 20Ka for 0.3 seconds. Ideal for industrial contexts requiring high-performance circuit protection, the Terasaki Electric Xs1600Ne excels in power distribution networks, manufacturing plants, and critical infrastructure installations.
The Terasaki Electric Xs1600Ne Circuit Breaker Xmc 9 Motor Operator 1600 A represents the top of Terasaki Electric assurance to quality and innovation. Whether safeguarding machinery or ensuring uninterrupted power supply, this breaker delivers better performance backed by decades of manufacturing expertise and reliability.
Enhance your industrial electrical system with the Terasaki Xs1600Ne 3 Pole Circuit Breaker Ac690V 50~60Hz 1600Amp . Manufactured for robust performance at Ac690V and 50~60Hz, with a 1600A current capacity, this breaker ensures reliable power distribution and protection.
