Terasaki Tl-100C No Fuse Circuit Breaker 60A 600V Ac 3-pole
Mfg: Terasaki Electric Co., Ltd.
Current Limiting
No Fuse Circuit Breaker
Tl-100C
Ac600V Dc250V
60A
41-26180
Ac220V 180Ka

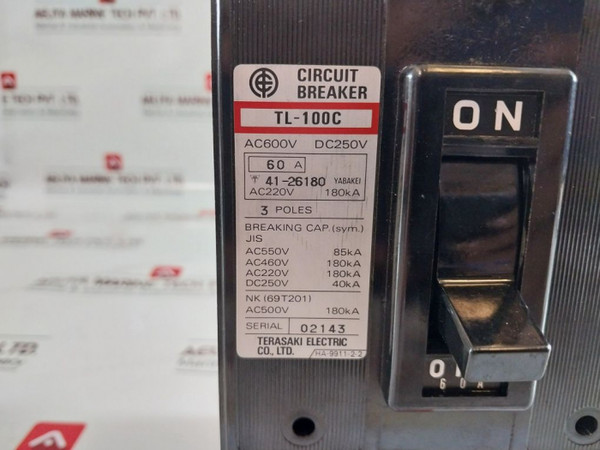

| Parameter | Terasaki TL-100C Circuit Breaker 60A |
|---|---|
| Manufacturer | Terasaki Electric Co., Ltd. |
| Type | Current Limiting, No Fuse Circuit Breaker |
| Model | TL-100C |
| Voltage Rating (AC) | AC 600V |
| Voltage Rating (DC) | DC 250V |
| Current Rating | 60A |
| Part Number | 41-26180 |
| Short-Circuit Breaking Capacity | AC 220V 180kA |
| Poles | 3 Poles |
| Shunt Trip | Yes |
| Frequency | AC 200-480V 50/60Hz |
| Equipment Type | Molded Case Circuit Breaker |
| Equipment Part | 871.010-009 |
| Country of Manufacture | Japan |
| Weight | 5.270 Kg |
The Terasaki TL-100C Circuit Breaker 60A is one of the most reliable and efficient circuit breakers designed for numerous industrial and commercial applications. With a reputation for its robust construction and advanced safety features, the TL-100C is a current-limiting, no-fuse type circuit breaker that protects against electrical faults while still maintaining a high breaking capacity. Because the 60A rating, along with the short circuit endurance, it can well suffice for medium power applications; furthermore, high short circuit current allows for even the most intense loads of electricity. Circuit Breaker in Molded case form is typically used especially low-voltage main switchboard type.
1. Current Limiting: Helps to prevent electrical circuits by limiting fault current in the case of short circuits.
2. Voltage Ratings:
3. Rated Current: 60A suitable for various applications
4. Breaking Short-Circuit Capacity:
5. 3 poles: This will make sure the circuit breaker is compatible with 3 phase electrical systems.
6. Shunt Trip: If needed to guarantee safe remotized tripping of the circuit breaker
7. Frequency: supports AC 200-480V 50/60Hz, so this circuit breaker is quite versatile with regards to the supply conditions.
8. Compact and Rugged: Designed for use in compact spaces, but highly robust.
9. Origin: It is manufactured in Japan.
10. Weight: 5.270 kg; for its high current rating, such a circuit breaker should normally weigh around that much.
1. Industrial Electrical Systems: These are applied in plant and factory protection, given that they are subjected to high-level fault and overloads.
2. Main Switchboards: this is a key element of LV switchboards applied for circuit control and protection in various electrical circuits.
3. Power Distribution Units: They are effectively used in large electrical installations such as controlling power flow
4. HVAC Systems: Their application is found in a control panel for the compression and other vital electrical appliances installed in HVAC.
5. Renewable Energy Systems: Offers protection in solar and wind power systems where high reliability is a must.
6. Automation and Control Systems: Suitable for the protection of automation systems that are sensitive to overloads and electrical faults.
