Terasaki Tl-1200Ne 3 Pole 1250 A Circuit Breaker Ac690V 50~60Hz
terasaki electric co., ltd.
tembreak
circuit breaker
tl-1200ne
ui ac690v 50
| Specification | Details |
|---|---|
| Product Name | Terasaki TL-1200Ne 3 Pole 1250 A Circuit Breaker AC690V 50~60Hz |
| Manufacturer | Terasaki Electric Co., Ltd. |
| Series | TemBreak |
| Type | Circuit Breaker |
| Model | TL-1200Ne |
| Rated Voltage (Ui) | AC690V 50~60Hz |
| Rated Current (In) | 600-700-800-1000-1200 A |
| Number of Poles | 3 Pole |
| Part Numbers | 2H2466SBA/K, 2H2467SAB/K, NK 98T204 |

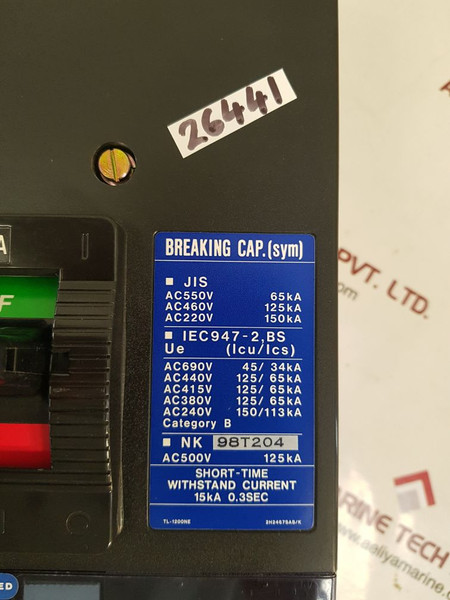

| Short-Time Withstand Current | 15kA 0.3sec |
| Current Transformer (CT) Rated Current | ICT 1250A |
| Standards | IEC 947 |
| Operating Voltage | AC380-450V |
| Trip Type | Under Voltage Trip |
| Control Voltage (UVT) | DC24V |
| UVT Controller | Type: XCU1S |
| Additional Part Number | 2AO661SAB |
| Internal Part Number | KRB-5168B |
| Country of Origin | Made in Japan |
| Weight | 25 kg |
The Terasaki TL-1200NE, a robust 3-pole circuit breaker designed to deliver reliable performance in demanding electrical environments. Manufactured by Terasaki Electric Co., Ltd., a leader in electrical protection solutions, the TL-1200NE is part of their renowned TemBreak series, known for its durability and safety features. With a current rating of 1250A, the TL-1200NE is well-suited for heavy-duty applications requiring robust circuit protection. It features advanced thermal magnetic trip units that provide precise protection against overloads and short circuits, ensuring both equipment and personnel safety. The breaker strong construction and high-quality materials ensure durability and longevity, making it suitable for industrial plants, manufacturing facilities, data centers, and renewable energy systems. Its user-friendly design facilitates easy installation and maintenance, minimizing downtime and operational costs. Whether in demanding industrial conditions or critical infrastructure installations, the Terasaki TL-1200NE 3 Pole 1250A Circuit Breaker delivers reliable performance and comprehensive electrical protection.
1. High Capacity: The TL-1200NE supports a current rating of 1250A, making it suitable for heavy-duty applications where large electrical loads need to be managed efficiently.
2. Wide Voltage Range: Designed for AC690V operating voltage and compatible with frequencies ranging from 50Hz to 60Hz, ensuring versatility across different power systems and industrial contexts.
3. Robust Construction: Built to withstand rigorous conditions, the circuit breaker is crafted using high-quality materials, ensuring longevity and reliability in operation.
4. Thermal Magnetic Protection:Incorporates advanced thermal magnetic trip units that provide precise protection against overloads and short circuits, enhancing safety for both equipment and personnel.
5. Easy Installation and Maintenance: Designed with user convenience in mind, the TL-1200NE features straightforward installation procedures and minimal maintenance requirements, reducing downtime and operational costs.
Utilizations:
1.Industrial Applications: Ideal for use in industrial plants, manufacturing facilities, and commercial buildings where continuous operation and protection of electrical circuits are critical.
2.Power Distribution: Ensures safe and efficient distribution of electrical power across various loads, maintaining stable operation and preventing disruptions.
3.Renewable Energy Systems: Suitable for integration into renewable energy installations, supporting the reliable management of power generated from solar, wind, or other alternative sources.
4.Data Centers: Provides essential circuit protection in data centers, safeguarding sensitive electronic equipment from electrical faults and ensuring uninterrupted service.
The Terasaki TL-1200NE 3 Pole 1250A Circuit Breaker stands out as a reliable solution for high-current applications, offering robust protection and efficient performance in diverse industrial and commercial settings. With its advanced features and durable construction, it exemplifies Terasaki Electric's commitment to quality and safety in electrical protection systems. Whether for heavy industrial machinery, critical infrastructure, or renewable energy projects, the TL-1200NE delivers composure by ensuring reliable and secure electrical distribution.
