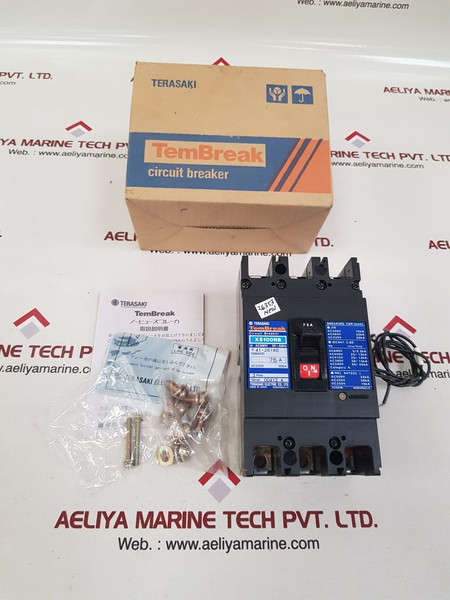

Terasaki Xs100Nb 3-pole Circuit Breaker 75Amp 100-115V 50/60Hz
terasaki electric co., ltd.
tembreak
circuit breaker
parts code: xs100nb
ui
| Attribute | Description |
|---|---|
| Brand | Terasaki Electric Co., Ltd. |
| Model | XS100NB |
| Description | 3-Pole Circuit Breaker |
| Rated Voltage | AC690V, 50-60Hz |
| Current Rating | 75A |
| Poles | 3 |
| Part Numbers | 2H2644SAA/K, NK (94T252), Shunt Trip 100-115V, 50/60Hz |

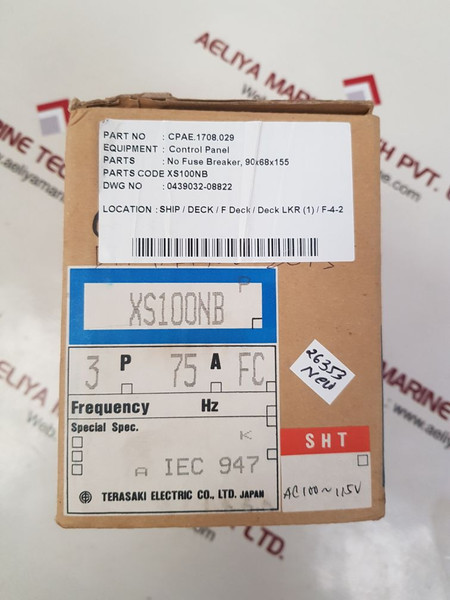

| Part Number (Equipment) | CPAE.1708.029 |
| Equipment | Control Panel |
| Parts | No Fuse Breaker, 90×68×155 IEC 947 |
| Manufactured In | Japan |
| Weight | 1.250 kg |
The Terasaki XS100NB 3-Pole Circuit Breaker is a strong and reliable solution to protect electrical systems in industrial and commercial environments. It is designed and manufactured by Terasaki Electric Co., Ltd. of Japan, under rated voltage of AC690V with a current rating of 75A. Built to international standards, the XS100NB is designed under IEC 947, ensuring that control panels and electrical equipment remain safe and reliable. Its compact design and versatile features make it an essential component for managing electrical loads and preventing system failures.
1. High Voltage Rating : Operates efficiently at AC690V, 50/60Hz, ideal for industrial applications.
2. 75A Current Rating : Designed to handle significant current loads with precision and safety.
3. 3-Pole Configuration : Provides reliable protection for three-phase electrical systems.
4. Shunt Trip Functionality : Equipped with a 100-115V, 50/60Hz shunt trip mechanism for remote operation and emergency disconnection.
5. Durable Construction : Built to withstand harsh industrial conditions, ensuring long-lasting performance.
6. Compact Dimensions : Measures 90×68×155 mm, making it easy to install in control panels and tight spaces.
7. No-Fuse Design : Eliminates the need for replacement fuses, reducing maintenance costs and downtime.
8. Compliance with IEC 947 : Meets international safety and quality standards for circuit breakers.
9. Manufactured in Japan : Quality and precision associated with Terasaki Electric Co., Ltd.
10. Lightweight and portable : Weighs 1.250 kg, easy handling and installation.
1. Industrial Control Panels : Provides protection for equipment in manufacturing and processing facilities.
2. Commercial Buildings : Ensures reliable power distribution in office buildings and complexes.
3. Marine Applications : Protects electrical systems on ships and offshore platforms.
4. Power Generation Plants : Manages and safeguards electrical distribution in power stations.
5. Renewable Energy Systems : Operates in solar and wind energy installations for load protection.
6. Data Centers : Ensures stable and reliable operation in critical IT infrastructure.
7. HVAC Systems : Safeguards electrical components in heating, ventilation, and air conditioning systems.
8. Automated Machinery : Protects motors and control systems in automated production lines.
9. Mining Equipment : Provides circuit protection in rugged and hazardous mining operations.
10. Energy Distribution Networks : Ensures safe operation in medium and low-voltage distribution systems.
Protect your electrical systems with the dependable Terasaki XS100NB Circuit Breaker. Explore similar products by clicking here and contact Aeliya Marine today for expert support and prompt delivery!
