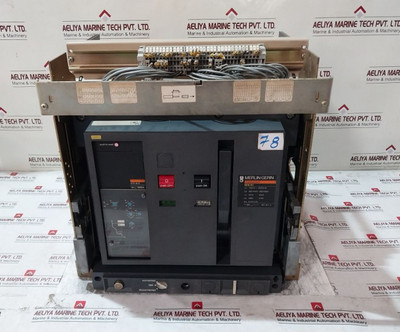

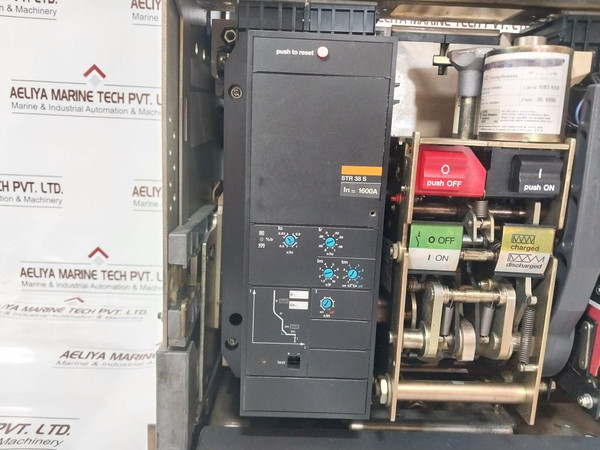

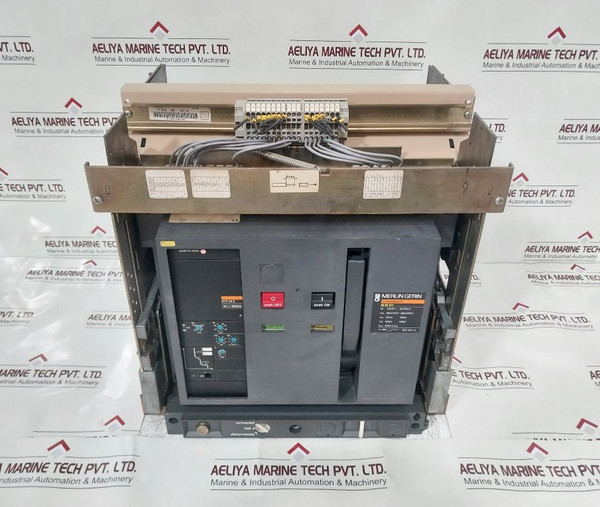

Merlin Gerin M16 N1 1600Amp Masterpact Circuit Breaker Tf10961000610
Merlin Gerin
Masterpact
M16 N1
Ui 1000V~ 50/60Hz
Ue 380/440V 480/690V
Icu 40Ka 40Ka
Ics 40Ka 40Ka
Icw 40Ka 0,5S
Iec 947-2
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin M16 N1 1600Amp Masterpact Circuit Breaker Tf10961000610 |
| Brand | Merlin Gerin |
| Series | Masterpact |
| Model | M16 N1 |
| Ui | 1000V~ 50/60Hz |
| Ue | 380/440V, 480/690V |
| Icu | 40Ka, 40Ka |
| Ics | 40Ka, 40Ka |
| Icw | 40Ka, 0.5S |
| Standard | IEC 947-2 |

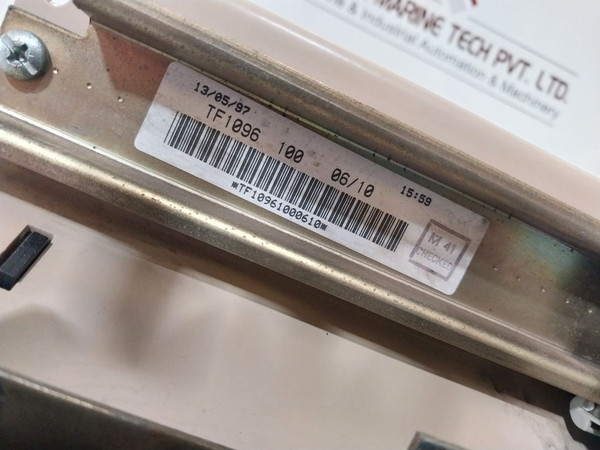

| Product Code | Tf1096 100 06/10 |
| Reference Code | Tf10961000610 |
| Str | 38 S |
| In | 1600A |

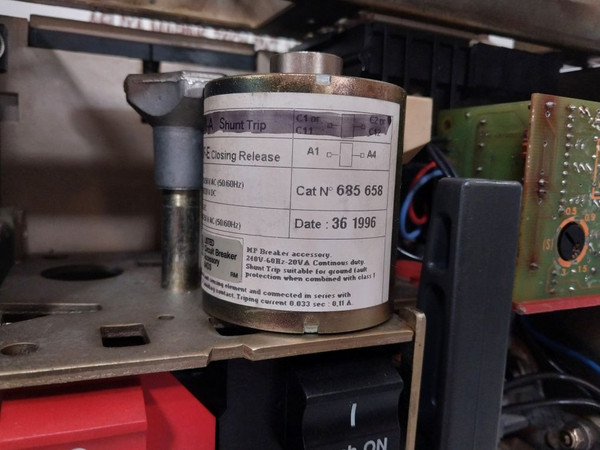

| Shunt Trip | Mx-a |
| Closing Release | Xf-e |
| Voltage Rating | IEC 220/250 Vac (50/60Hz), 200/220V Dc, JIS/JEC 200/250Vac (50/60Hz) |
| Catalog Number | 685 658 |
| Accessory Type | Mp Breaker Accessory |
| Accessory Voltage Rating | 240V-60Hz-20Va |
| Additional Product Code | Tf7440 100 004/010 |
| Motor Mechanism | Mch-m |
| Motor Mechanism Voltage | IEC 200/240V Ac (50/60Hz) |
| Motor Mechanism Catalog No. | 685 763 |
| Technical Level Number | 01 |
| Motor Mechanism Power Rating | 240V-60Hz-180Va |
| Spring Charged Switch | 10A at 240Vac |
| Weight | 72.900 Kg |
The Merlin Gerin M16 N1 1600Amp Masterpact Circuit Breaker, model Tf10961000610, is a high-capacity device designed for reliable electrical protection in various industrial applications. It operates efficiently within a voltage range of 380V to 690V and is suitable for both 50Hz and 60Hz frequencies. With a maximum current rating of 1600 amps, this circuit breaker is ideal for handling substantial electrical loads, ensuring the safety and functionality of your electrical systems.
Key Features
One of the standout features of the Merlin Gerin M16 N1 circuit breaker is its interrupting capacity. It boasts an ultimate short-circuit breaking capacity (Icu) and service short-circuit breaking capacity (Ics) of 40kA, ensuring it can handle high fault currents without compromising performance. The circuit breaker also features a withstand short-circuit current (Icw) of 40kA for 0.5 seconds, providing robust protection in critical situations. Additionally, it complies with the IEC 947-2 standard, ensuring it meets international safety and performance guidelines. This circuit breaker includes several advanced functionalities to enhance its performance and reliability. The Mx-a Shunt Trip allows for remote tripping of the circuit breaker, while the Xf-e Closing Release enables remote closing. These features provide greater control and flexibility in managing electrical systems. The device operates within a voltage range of 220/250V AC (50/60Hz) and 200/220V DC, making it versatile for various power systems. The JIS/JEC compliance further assures its quality and compatibility with different standards.
The Merlin Gerin M16 N1 circuit breaker is equipped with a motor mechanism Mch-m that operates within 200/240V AC (50/60Hz), facilitating easy and efficient operation. It also includes a spring-charged switch with a rating of 10A at 240V AC, providing additional operational flexibility. The unit weighs 72.900 kg, ensuring stability and durability. For added convenience, it comes with several accessories, including a motor mechanism and a spring-charged switch, which enhance its overall functionality and ease of use. The Merlin Gerin M16 N1 1600Amp Masterpact Circuit Breaker is a reliable and versatile solution for protecting your electrical systems. With its high interrupting capacity, advanced features, and compliance with international standards, it ensures efficient and safe operation in various industrial applications.
For a similar product offering the same reliable performance and advanced features, consider the Merlin Gerin Masterpact M16 H1 Circuit Breaker 1600A . This model also provides robust protection for your electrical systems with a current rating of 1600 amps and includes additional functionalities to enhance control and safety.
