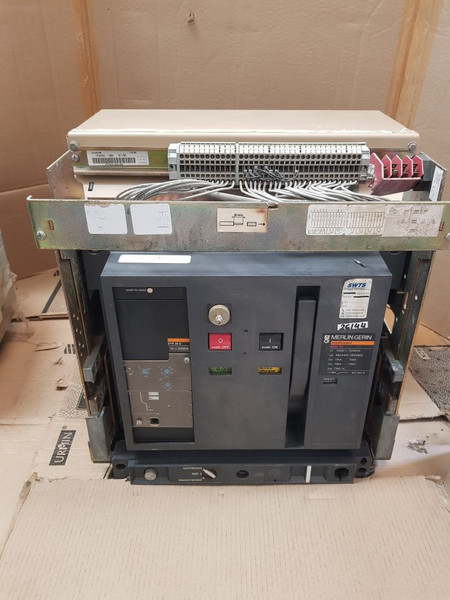

Merlin Gerin M25 H1 Circuit Breaker 2500A 1000V Ac 50/60Hz
merlin gerin
m25 h1
masterpact
ui 1000v~ 50/60hz
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin M25 H1 Circuit Breaker 2500A 1000V Ac 50/60Hz |
| Manufacturer | Merlin Gerin |
| Model | M25 H1 |
| Series | Masterpact |
| Ui | 1000V AC 50/60Hz |
| Ue | 380/440V, 480/690V |
| Icu | 75kA, 75kA |
| Ics | 75kA, 75kA |
| Icw | 75kA 1s |
| Standard | IEC 947-2 |
| Product Code | 00431 |
| Trip Unit | STR 28 D |
| Rated Current (In) | 2500A |
| Weight | 91 Kg |
The M25 H1 Circuit Breaker, a robust and reliable component from the valued Masterpact series, is designed to deliver better performance in demanding industrial conditions. Rated at 2500A and capable of operating at 1000V AC with a frequency range of 50/60Hz, this circuit breaker is manufactured to ensure optimal electrical protection and efficiency.
Main Features:
1.High Voltage Rating: The M25 H1 operates efficiently at a voltage rating of 1000V Ac, making it suitable for high-voltage applications.
2.Current Rating: With a rated current of 2500A, this circuit breaker is ideal for managing large electrical loads, ensuring stability and safety in your power distribution systems.
3.Interrupting Capacity: The M25 H1 boasts an interrupting capacity (Icu) of 75ka at both 380/440V and 480/690V, ensuring reliable operation during high fault conditions.
4.Service Continuity: It maintains an exceptional service continuity rating (Ics) of 75ka, guaranteeing consistent performance without compromise.
5.Short-Time Withstand Current: The breaker can withstand short-time currents (Icw) of 75ka for 1 second, providing robust protection against short-circuits.
6.Compliance with Standards: Adheres to the Iec 947-2 standard, ensuring compliance with international electrical safety and performance standards.

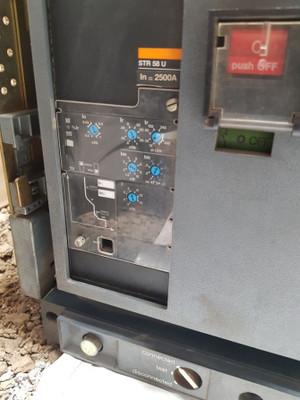

7.Advanced Control Unit: Equipped with the STR 28 D control unit, enabling precise monitoring and control of electrical parameters.
Utilizations:
1.Industrial Power Distribution: The M25 H1 circuit breaker is perfectly suited for industrial power distribution systems, where high current and voltage handling capabilities are essential. Its robust design and high interrupting capacity ensure protection against overloads and short circuits, maintaining operational safety and efficiency.
2.Manufacturing Facilities: In manufacturing conditions, reliable and continuous power is critical. The M25 H1 ensures minimal downtime and protects sensitive machinery from electrical faults, enhancing productivity and safeguarding equipment.
3.Commercial Buildings: For large commercial buildings with complex electrical systems, this circuit breaker provides a dependable solution for managing high electrical loads. Its ability to handle high interrupting capacities ensures that the electrical infrastructure remains protected, reducing the risk of power outages.
4.Renewable Energy Installations: The M25 H1 capability to operate at high voltages makes it suitable for renewable energy installations, such as solar and wind power systems, where it can manage the high output of modern renewable energy equipment efficiently.
5.Reliability and Performance: The Merlin Gerin M25 H1 is constructed with durability and reliability in mind. Its robust design and adherence to international standards make it a trustworthy component in any high-stakes electrical system. With a strong focus on performance and safety, it ensures the protection of electrical circuits against faults and overloads, thereby extending the lifespan of connected equipment and reducing maintenance costs.
6.Compliance and Quality Assurance: Manufactured under strict quality control processes, the M25 H1 meets and exceeds the rigorous standards set by IEC 947-2. This ensures that each unit provides reliable and consistent performance, aligning with global safety and operational benchmarks. Additionally, its integration with advanced control technology (STR 28 D) allows for enhanced monitoring and maintenance, enabling proactive management of electrical systems.
The Merlin Gerin M25 H1 Circuit Breaker is a perfect choice for applications requiring high current and voltage handling capabilities. Its combination of advanced features, robust construction, and compliance with international standards makes it an essential component for ensuring the safety, reliability, and efficiency of electrical power systems in industrial, commercial, and renewable energy sectors.
For those seeking high-performance circuit breakers, this product Merlin Gerin Masterpact M25 H1 Circuit Breaker 1000V Ac 2500A offers an ideal solution. Designed to handle heavy electrical loads with precision and reliability, it is comparable to the Merlin Gerin M25 H1 Circuit Breaker 2500A 1000V Ac 50/60Hz. Both models are manufactured for durability and efficiency, ensuring robust protection for your electrical systems.
