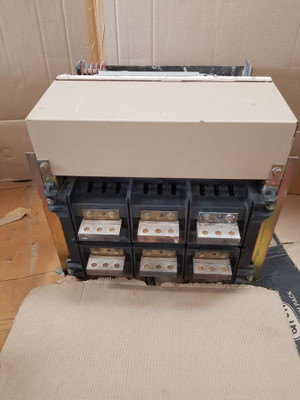

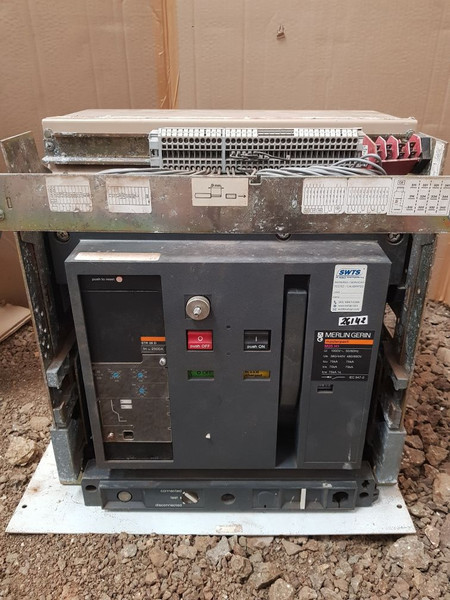

Merlin Gerin M25 H1 Circuit Breaker 2500Amp 1000V 50/60Hz
merlin gerin
m25 h1
masterpact
ui 1000v~ 50/60hz
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin M25 H1 Circuit Breaker 2500Amp 1000V 50/60Hz |
| Brand | Merlin Gerin |
| Model | M25 H1 |
| Series | Masterpact |
| Ui | 1000V~ 50/60Hz |
| Ue | 380/440V, 480/690V |
| Icu | 75kA |
| Ics | 75kA |
| Icw | 75kA 1s |
| Standards | IEC 947-2 |
| Trip Unit | STR 28 D |
| In | 2500A |
The M25 H1 Circuit Breaker is a top-tier solution for ensuring the safety and reliability of high-power electrical systems. With a remarkable 2500A capacity and the ability to handle voltages up to 1000V, this circuit breaker is designed to meet the demanding requirements of industrial applications. Part of the Masterpact series, the M25 H1 provides exceptional performance, adhering to international standards and delivering robust protection against electrical faults.
Key Features
The Merlin Gerin M25 H1 Circuit Breaker stands out for its impressive specifications and features that make it ideal for high-demand conditions:
1.High Voltage Capacity:Designed to handle up to 1000V, this circuit breaker can operate efficiently at both 380/440V and 480/690V, offering flexibility for various industrial conditions.
2.High Current Rating: With a rated current of 2500A, it ensures stable and reliable operation even under heavy load conditions, making it suitable for large-scale industrial applications.
3.Breaking Capacity: The M25 H1 has a high breaking capacity, with Icu and Ics both rated at 75kA. This ensures that it can safely interrupt fault currents without damage, providing reliable protection for your electrical system.
4.Withstand Rating: It has a short time withstand current (Icw) of 75kA for 1 second, ensuring it can handle short-term overloads without tripping unnecessarily.
5.Standards Compliance: The breaker complies with IEC 947-2 standards, guaranteeing international quality and safety benchmarks are met.

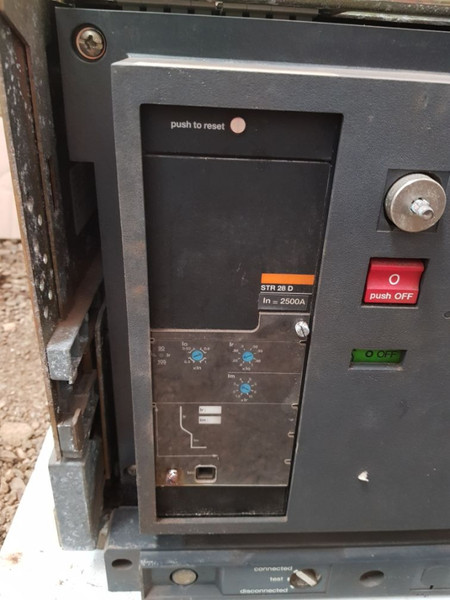

6.Protection and Control: Equipped with the STR 28 D protection unit, it offers advanced trip settings and monitoring capabilities to safeguard against various types of electrical faults.
Benefits of Using the Merlin Gerin M25 H1 Circuit Breaker
The Merlin Gerin M25 H1 Circuit Breaker brings various benefits to your electrical infrastructure:
1.Enhanced Safety: With high breaking and withstand capacities, this circuit breaker provides robust protection against electrical faults, minimizing the risk of damage to equipment and ensuring the safety of personnel.
2.Operational Efficiency: Its ability to handle high currents and voltages ensures efficient operation in demanding industrial conditions, reducing the possibility of downtime due to electrical failures.
3.Compliance and Reliability: Meeting IEC 947-2 standards, the M25 H1 guarantees reliable performance and compliance with international safety and quality regulations.
4.Advanced Monitoring and Control: The STR 28 D protection unit offers precise control over trip settings, enabling customized protection for specific applications and improving overall system reliability.
5.Versatility: Its compatibility with a range of voltages and the ability to operate at 50/60Hz make it suitable for a variety of industrial applications, from manufacturing to energy distribution.
Applications
The Merlin Gerin M25 H1 Circuit Breaker is designed for a wide range of industrial applications, including but not limited to:
1.Manufacturing Plants: Ensuring the safety and reliability of electrical systems in environments with heavy machinery and high-power demands.
2.Energy Distribution: Providing robust protection in power distribution networks, including substations and switchgear assemblies.
3.Commercial Buildings: Safeguarding large commercial installations with significant electrical loads, such as shopping centers, office complexes, and data centers.
4.Infrastructure Projects: Supporting the electrical needs of infrastructure projects like airports, railways, and water treatment plants, where reliable power is critical.
5.Renewable Energy: Integrating into renewable energy systems, including wind farms and solar power plants, to ensure safe and reliable operation.
The Merlin Gerin M25 H1 Circuit Breaker is a premium choice for those seeking robust protection and reliability in high-power electrical systems. With its impressive capacity, compliance with international standards, and advanced protection features, it stands as a reliable component in ensuring the safety and efficiency of industrial operations. Whether you're managing a manufacturing plant, a power distribution network, or a large commercial facility, the M25 H1 offers the performance and reliability needed to keep your electrical systems running smoothly.
For a similar robust and reliable circuit breaker, consider the Merlin Gerin Masterpact M25 H1 Circuit Breaker 1000V 50/60Hz 2500Amp , offering advanced protection and operational efficiency for high-power electrical systems.
