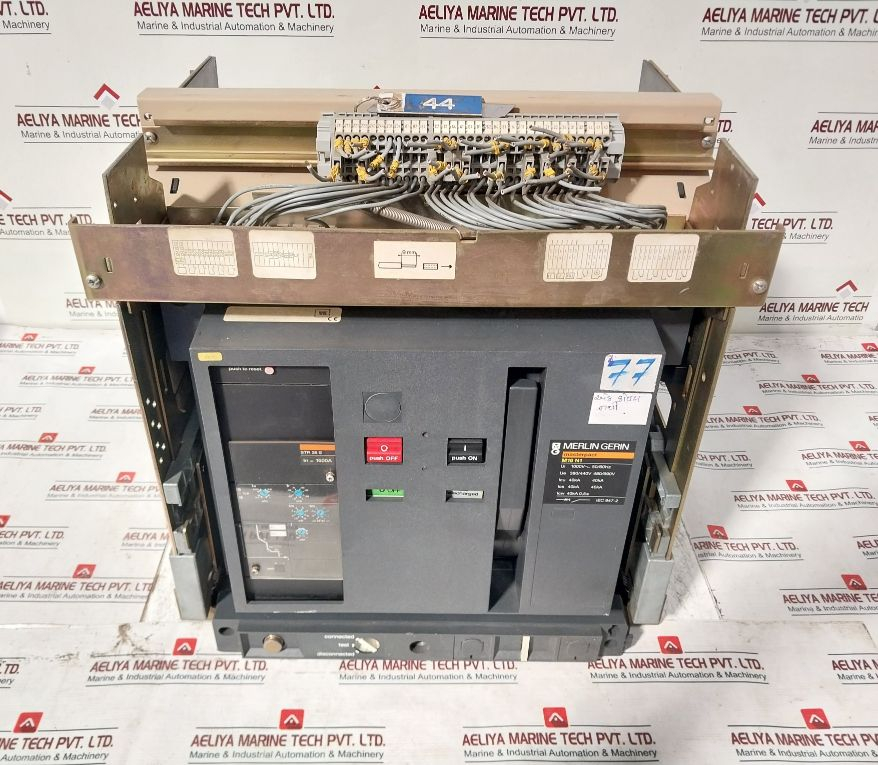

Merlin Gerin Masterpact M16 N1 Circuit Breaker 1600A 1000V 50/60Hz
Merlin Gerin
Masterpact
M16 N1
Ui 1000V~ 50/60Hz
Ue 380/440V 480/690V
Icu 40Ka 40Ka
Ics 40Ka 40Ka
Iaw 40Ka 0,5S
Iec 947-2
Str 38 S
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Masterpact M16 N1 Circuit Breaker 1600A 1000V 50/60Hz |
| Manufacturer | Merlin Gerin |
| Model | Masterpact M16 N1 |
| Ue | 380/440V, 480/690V |
| Ui | 1000V~ 50/60Hz |
| Icu | 40kA |
| Ics | 40kA |
| Ics | 40kA 0.5s |
| Conforms to Standards | IEC 947-2 |
| Closing Time (Str) | 38S |
| Rated Current (In) | 1600A |
| Series/Series | Tf7440 100 07/10 |
| Type | M16 N1 3 F P P 5 |
| Category | Cat B |
| Current Rating (In) | 3 x 1600A |
| Additional Features | Mx-a Shunt Trip, Xf-e Closing Release |
| Control Voltage | IEC 220/250V AC (50/60Hz), 200/220V DC |
| JIS/JEC Voltage | 200/250V AC (50/60Hz) |
| Catalog Number | 685 658 |
| Breaker Accessory | MP Breaker Accessory 240V-60Hz-20Va Continuous Duty, In Series with an "A" Auxiliary Contact |
| Tripping Current | 0.033 sec: 0.11A |
| Approvals | E103955 |
| Motor Mechanism | MCH-M |
| Motor Voltage | IEC 200/240V AC (50/60Hz) |
| Motor Catalog Number | 685 763 |
| Technical Level Number | 01 |
| Motor Power Consumption | 240V-60Hz-180 VA |
| Spring Charged Switch | 10A at 240V AC |
| Weight | 73 kg |
The Merlin Gerin Masterpact M16 N1 Circuit Breaker stands as a benchmark in the area of industrial circuit protection. Designed to provide to the precise demands of modern electrical systems, this circuit breaker ensures optimal performance and safety. With a nominal current rating of 1600A, it is manufactured to handle large electrical loads, making it an ideal choice for high-capacity applications. The breaker operates efficiently at both 50Hz and 60Hz frequencies, providing versatility across various electrical systems globally. Its Ui rating of 1000V and Ue rating across 380/440V to 480/690V demonstrate its robustness and adaptability to different voltage conditions.
The Masterpact M16 N1 is equipped with interrupting capacities, with Icu and Ics ratings of 40Ka, ensuring it can effectively manage short-circuit conditions without compromising system integrity. The Iaw rating of 40Ka for 0.5 seconds further emphasizes its ability to handle fault conditions temporarily without damage. Compliance with the IEC 947-2 standard underscores its adherence to stringent safety and performance criteria. The integrated Mx-a Shunt Trip and Xf-e Closing Release features enhance its operational capabilities, allowing for remote tripping and closing operations. The breaker also incorporates a motor mechanism Mch-m for efficient spring charging, ensuring readiness and quick response in critical situations. Additionally, the device's compatibility with auxiliary contacts and its specific tripping current settings further enhances its precision and reliability.
The Merlin Gerin Masterpact M16 N1 is not only about performance but also about build quality and reliability. With a weight of 73 kg, it is constructed to withstand demanding industrial conditions. The technical specifications include a series designation of Tf7440 and a catalog number of 685 658, ensuring precise identification and compatibility with various accessories and components. The breaker is designed to operate seamlessly with IEC and JIS standards for both AC and DC voltage ranges, showcasing its global applicability. The M16 N1 detailed manufacturing is evident in its continuous duty operation capabilities at 240V-60Hz-20Va, and spring-charged switch rated at 10A at 240V AC. These features collectively contribute to a robust and reliable circuit breaker that offers superior protection, operational efficiency, and longevity, making it a crucial component in any industrial electrical system.
For an equally reliable and robust solution, consider exploring the Merlin Gerin Masterpact 1600A M16 N1 Circuit Breaker 1000V 50/60Hz, which offers exceptional performance and advanced protection features similar to the Merlin Gerin Masterpact M16 N1 Circuit Breaker 1600A 1000V 50/60Hz.
