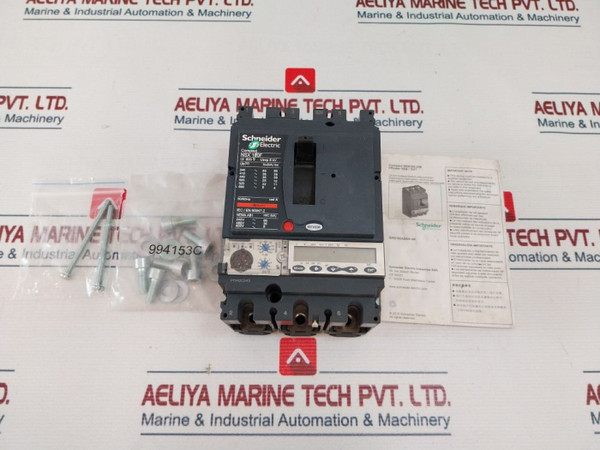

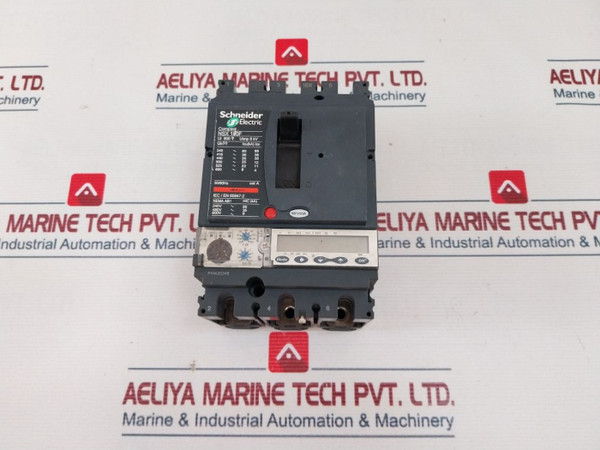

Schneider Electric Nsx 100F Circuit Breaker 63/160A 800V 50/60Hz
Schneider Electric Industries Sas
Circuit Breaker/Switch Disconnector
Compact
Nsx
Nsx 100F
Ui: 800V
| Attribute | Description |
|---|---|
| Manufacturer | Schneider Electric Industries SAS |
| Product Name | Circuit Breaker |
| Series | Compact NSX |
| Model | NSX 100F |
| Insulation Voltage (Ui) | 800V |
| Impulse Withstand Voltage (Uimp) | 8kV |
| Frequency | 50/60Hz |
| Category | Cat. A |
| Standards | IEC/EN 60947-2 |
| Current Rating | 63/160A |
| Part Numbers | P111420348, K14495 |
| Additional Codes | 160N, 9FHE0281334, 994153C |
| Weight | 1.930 kg |
The Schneider Electric NSX 100F Circuit Breaker is a strong, high-performance protection device for industrial and commercial electrical systems. It is part of the Compact NSX series, which operates at an efficiency voltage range of 800V Ui and has a rated impulse withstand voltage of 8kV Uimp. Built for safety and reliability, it is designed to handle current ratings up to 160A and adheres to international standards such as IEC/EN 60947-2. With a durable construction weighing 1.930 kg, the NSX 100F is an ideal solution for safeguarding electrical circuits in demanding environments.
1. High Voltage Capacity : 800V Ui rated with an 8kV Uimp, ensuring robust performance.
2. Versatile Current Rating : 63A to 160A, meeting various applications.
3. Compact Design : Part of the NSX series, offering space-saving solutions for electrical panels.
4. Frequency Compatibility : Suitable for systems operating at 50/60Hz.
5. Cat A Classification : Ensures superior protection against overloads and short circuits.
6. Standards Compliance : Certified under IEC/EN 60947-2 for safety and performance.
7. Long-Term Reliability : Built for the rigors of industrial life and is designed to last.
8. Ease of Installation : Simple to install in new or existing electrical systems.
9. Energy Savings : Reduces energy losses with high reliability.
10. Trusted Manufacturer : Backed by Schneider Electric's reputation for quality and innovation.
1. Industrial Facilities : Provides protection for electrical circuits in manufacturing and production lines.
2. Power Distribution : Ensures reliable performance in electrical distribution networks.
3. Renewable Energy Systems : Functions efficiently in solar and wind power installations.
4. Marine Applications : Provides circuit protection in shipboard electrical systems.
5. Data Centers : Protects critical IT infrastructure from electrical faults.
6. HVAC Systems : Enhances reliability in heating, ventilation, and air conditioning units.
7. Building Automation : Supports energy management in commercial and residential buildings.
8. Pumping Stations : Protects electrical circuits in water and fluid handling systems.
9. Mining Operations : Ensures electrical safety in heavy-duty industrial environments.
10. Testing Laboratories : Provides reliable protection for experimental electrical setups.
Protect your electrical systems with the Schneider Electric NSX 100F Circuit Breaker. For related products, click here. Contact Aeliya Marine today for expert advice and fast delivery!
