Schneider Electric Nsx 160F Circuit Breaker 160A 800V 50/60Hz
Manufactured By Schneider Electric Industries Sas
Compact Nsx
Circuit Breaker
Micrologic Trip Unit
Nsx 160F
Ui 800 V
Uimp 8 Kv
50/60Hz
Cat A<
| Item | Details |
|---|---|
| Product | Schneider Electric NSX 160F Circuit Breaker Micrologic Trip Unit |
| Manufacturer | Schneider Electric Industries SAS |
| Type | Compact NSX Circuit Breaker |
| Model | NSX 160F |
| Rated Voltage (Ui) | 800 V |
| Impulse Voltage (Uimp) | 8 kV |
| Frequency | 50/60Hz |
| Category | Cat A |
| IEC/EN Standard | IEC/EN 60947-2 |
| Rated Current | 63/160 A |
| Micrologic Version | Micrologic 6.2 A |
| Tripping Current | 125% |

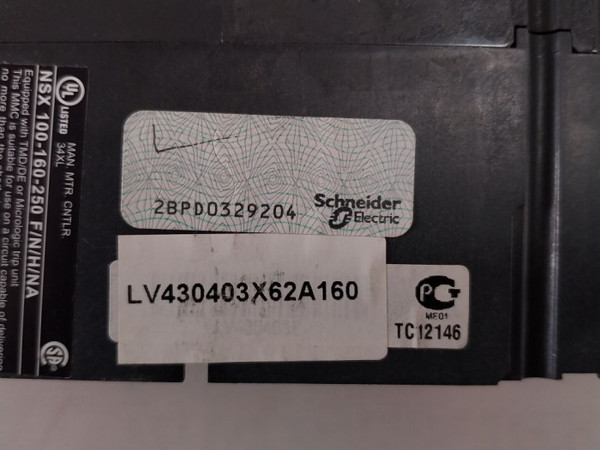

| Technical Code 1 | 2BPD0329204 |
| Part Number 1 | LV430403X62A160 |
| Part Number 2 | S1B42261.. |
| Reference Number | 122450288 |
| Part Number 3 | 994076C |
| Part Number 4 | 994153C |
| Product Specification | 3P3D Mic 6.2A 160A NSX160F |
| Technical Reference | 121012 0565 |
| Extended Part Number | LV430403X62A160190748 |
| Country of Manufacture | Manufactured in India |
| Weight | 1.960 Kg |
High-performance circuit protection device Schneider Electric NSX 160F circuit breaker with Micrologic Trip Unit was designed for the new modern electrical distribution network. It has been produced by Schneider Electric Industries SAS - a compact circuit breaker giving an industrious level of protection and control for almost all types of industries and business ventures.
The NSX 160F circuit breaker can have ratings of 63/160 A and 800 V. It provides reliable operation even in the toughest application environments. This product ensures a precise setting of the trip point through its in-built micrologic trip unit, thereby adding functionality such as an adjustable tripping current set at 125%. It also supports both 50Hz and 60Hz systems and is aligned with the standards of IEC/EN 60947-2.
The weight of this NSX 160F is 1.960 kg, it is made easy to install and integrate with other systems in place. Its strong construction and advanced features have generated trust among professionals who seek reliable circuit protection solutions.
1. High Current Rating : 63/160A rated, this device offers a wide applicability scope within industrial environments.
2. Voltage Rating : The product operates right up to a voltage of 800V and, as such, finds its place well within various electrical systems.
3. Advanced Trip Unit : Used with a Micrologic trip unit that gives unmatched accuracy of setting trips and also provides more functionality.
4. Adjustable Tripping Current : Has an adjustment facility in tripping current which is set at 125% for specific tailored protection.
5. Compact Design : Engineered to fit easily into space-constrained environments without sacrificing performance.
6. Durable Construction : Manufactured resistant to the rigorous effects that industries pose, this product is very durable and reliable.
7. Weight : The unit has a weight of 1.960 kg, making handling and installation easy.
8. Effective Insulation : Uimp rating has 8 kV, ensuring to provide reliable performance in every single kind of environment.
9. Quality Manufacturing : This product has been manufactured by Schneider Electric, leading in its class in producing high-quality electrical solutions.
10. Meets standards : It meets the standards demanded by IEC/EN 60947-2.
1. Industrial Electrical Systems : Application in circuit protection in factories and manufacturing locations.
2. Commercial Buildings : Protecting Reliability and Safety in Electrical Distribution Panels
3. Data Centers : Provide Continuous Service using Critical Power Systems
4. Renewable Energy Systems : Improving Protection in Solar and Wind Energy Power Systems
5. HVAC Equipment : Protecting Circuits of Heating, Ventilation, and Air Conditioning
6. Pumping Stations : Reliability of Operation in Water and Wastewater Handling Facilities.
7. Process control systems : Process industries utilize such systems to maintain operating conditions at an optimum level.
8. Marine application : Shipboard electrical systems are protected with such systems for safety and efficiency in service.
9. Construction equipment : Installation in heavy machinery protects the electrical components from damage.
10. Transportation systems : Rail and public transit services use them for safety purposes.
Ensure dependable circuit protection with the Schneider Electric NSX 160F Circuit Breaker. Like Related Products Reach out to Aeliya Marine today for more details and customized solutions!
