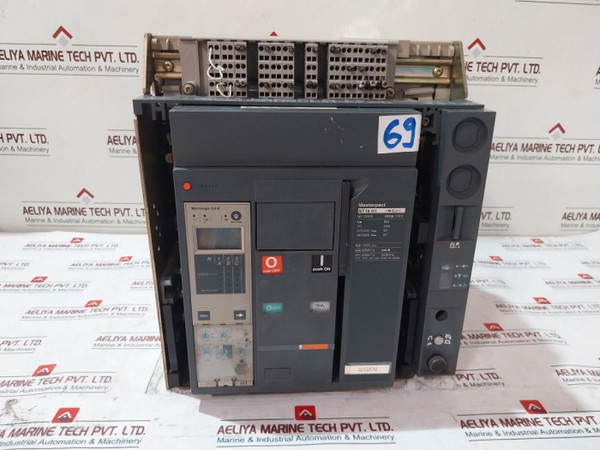

Merlin Gerin Nt16 H1 Micrologic 5.0A Circuit Breaker 1600A Mch 200-240 Vac
Merlin Gerin
Micrologic 5.0A
In= 1600A
Masterpact
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Nt16 H1 Micrologic 5.0A Circuit Breaker 1600A Mch 200-240 Vac |
| Manufacturer | Merlin Gerin |
| Micrologic | 5.0A |
| In | 1600A |
| Masterpact | Nt16 H1 |
| Ui | 1000V |
| Uimp | 12kV |
| Ue | 220/440V~, 480/690V~ |
| Icw | 42kA |
| Ics | 100% Icu |
| Icw (1s) | 42kA/1s |
| Category | B |
| Standard | IEC 60947-2 50/60Hz |
| Mch | 200-240 Vac |
| Xf | 200-250 Vac/Vdc |
| Mn | 200-250 Vac/Vdc |
| Rr | 200-250 Vac/Vdc |
| Accessory | Circuit Breaker Accessory |
| Certifications and Approvals | E161835, E63335, 0071040708101013701720, Serie: 1204100677, 0513, 015014067727, 007112337574, 33757/Ghj10113Aa, H07112 |
| Weight | 36.050 Kg |
The Nt16 H1 Micrologic 5.0A Circuit Breaker is a robust and reliable solution designed to ensure the safety and efficiency of electrical systems in industrial contexts. With its advanced features and high performance, it is the ideal choice for protecting electrical circuits from overloads, short circuits, and other faults.
Key Features:
1. Rated Current (In): The Merlin Gerin Nt16 H1 is manufactured to handle a continuous current of up to 1600A, making it suitable for high-demand applications.
2. Masterpact Technology: This circuit breaker utilizes Masterpact technology, known for its superior protection capabilities and reliability. It ensures that your electrical systems operate smoothly and safely.
3. Micrologic 5.0A: The integrated Micrologic 5.0A control unit offers advanced protection and monitoring features. It provides real-time data on current, voltage, and other critical parameters, allowing for proactive maintenance and system optimization.
4. Rated Insulation Voltage (Ui): With a high insulation voltage of 1000V, the Nt16 H1 is built to withstand harsh electrical conditions and prevent electrical arcing.
5. Impulse Withstand Voltage (Uimp): The circuit breaker is designed to handle impulse voltages up to 12kV, ensuring protection against transient over voltages.
6. Short-Time Withstand Current (Icw): The Nt16 H1 can withstand short-time currents of up to 42kA for 1 second, providing robust protection against high fault currents.
7. Service Short-Circuit Breaking Capacity (Ics): The circuit breaker ensures full breaking capacity, maintaining system integrity and safety even under extreme fault conditions.
8. Compliance: The Merlin Gerin Nt16 H1 adheres to the IEC 60947-2 standard, guaranteeing high performance and safety in industrial applications.
9. Frequency: The circuit breaker is compatible with both 50Hz and 60Hz systems, making it suitable for global applications.
Applications
The Merlin Gerin Nt16 H1 Micrologic 5.0A Circuit Breaker is ideal for a wide range of industrial applications, including:
1. Manufacturing Plants: Protects machinery and electrical systems from faults, ensuring continuous and safe operation.
2. Data Centers: Ensures the reliability and safety of critical power distribution systems, preventing downtime.
3. Commercial Buildings: Provides reliable protection for complex electrical networks, ensuring safety and compliance with regulations.
4. Energy Sector: Suitable for use in power generation and distribution, providing robust protection for electrical infrastructure.
5. Transportation: Used in railways, airports, and other transportation systems to protect electrical circuits from faults.
Benefits:
1. Enhanced Safety: The advanced protection features of the Micrologic 5.0A control unit ensure that electrical systems are safeguarded against faults, reducing the risk of damage and downtime.
2. Reliability: Built with high-quality materials and adhering to international standards, the Nt16 H1 offers reliable performance even in demanding conditions.
3. Flexibility: With its wide range of operational voltages and control options, the circuit breaker can be easily integrated into various electrical systems.
4. Easy Monitoring and Maintenance: The real-time data provided by the Micrologic 5.0A unit allows for proactive maintenance, reducing the risk of unexpected failures and extending the lifespan of the equipment.
5. Compliance: Meeting IEC 60947-2 standards ensures that the circuit breaker adheres to global safety and performance requirements.
The Merlin Gerin Nt16 H1 Micrologic 5.0A Circuit Breaker 1600A Mch 200-240 Vac is a high-performance solution for protecting industrial electrical systems. Its advanced features, robust construction, and compliance with international standards make it an ideal choice for a variety of applications. Whether you're looking to safeguard manufacturing equipment, data centers, commercial buildings, or energy infrastructure, the Nt16 H1 provides the reliability and protection you need.

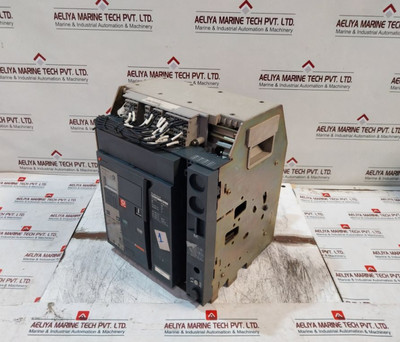

For a high-performance circuit breaker with advanced protection features, consider the Merlin Gerin Nt16 H1 Circuit Breaker with Micrologic 2.0A 1600A . This model offers robust protection and reliable performance, making it an excellent choice for safeguarding your industrial electrical systems.
