Sold Out

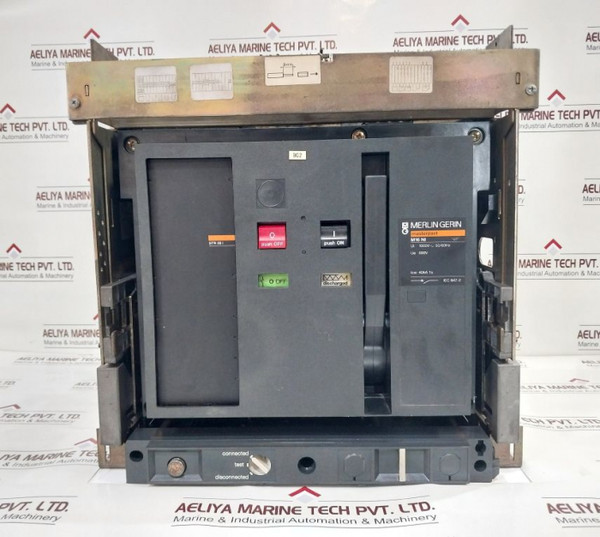

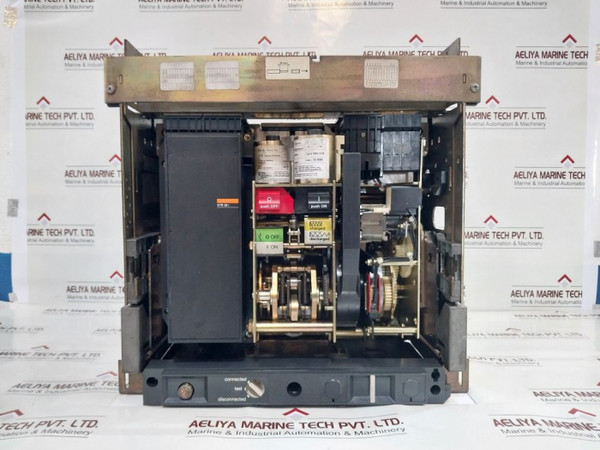

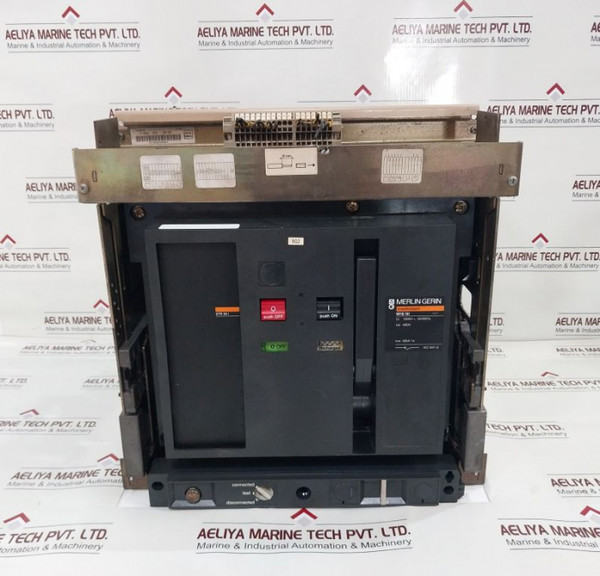

Merlin Gerin/Schneider Masterpact M16 Ni Circuit Breaker 50/60Hz 1600Amp
Merlin-gerin
Schneider Electric
Masterpact
M16 Ni
Ui: 1000V~ 50/60Hz
Ue: 690V
Icw 40Ka 1S
Iec 947-2
Str 08 I
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin/Schneider Masterpact M16 Ni Circuit Breaker 50/60Hz 1600Amp |
| Brand | Merlin-gerin |
| Manufacturer | Schneider Electric |
| Model | Masterpact |
| Type | M16 Ni |
| Ui | 1000V~ 50/60Hz |
| Ue | 690V |
| Icw | 40Ka 1S |
| Standard | IEC 947-2 |
| Trip Unit | Str 08 I |

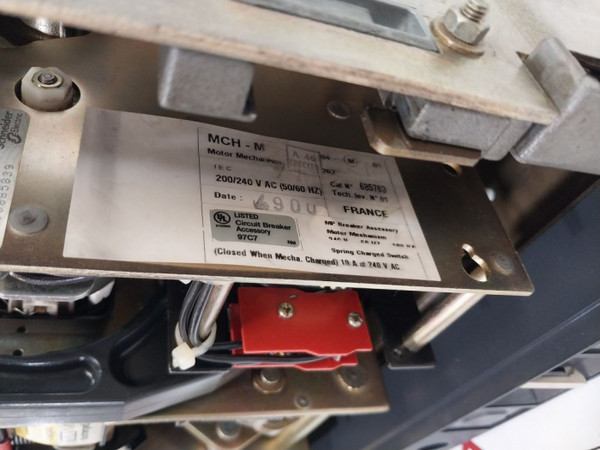

| Mechanism | Mch-m Motor Mechanism |
| Control Voltage | IEC 200/240V AC (50/60 Hz) |
| Catalog Number (Main) | 685763 |
| Technical Level Number | 01 |
| Power Requirement | 240V 60Hz 100Va |
| Auxiliary Contact | Mx-a |
| Shunt Trip | Xf-e Closing Release |
| Release Voltage | IEC 220/250V AC (50/60Hz), 200/220V DC |
| Catalog Number (Accessory) | 685 658 |
| Breaker Accessory | Mp Breaker Accessory |
| Power Requirement (Accessory) | 240V-60Hz-20Va |
| Serial Number | 6Uhg0885839 |
| Manufacturing Date Code | Tf1096 276 09/09 |
| Date Code | *Tf10962760909* |
| Weight | 68.550 Kg |
The Merlin Gerin/Schneider Masterpact M16 Ni Circuit Breaker is designed to offer reliable protection and control for electrical systems. Ideal for various industrial applications, this circuit breaker ensures safety and efficiency in managing electrical loads.
Essentail Features:
1. High Voltage Capacity: The circuit breaker operates with a Ui of 1000V at 50/60Hz, making it suitable for high voltage applications. It supports an operational voltage (Ue) of 690V, ensuring compatibility with a range of electrical systems.
2. Amperage: With a current rating of 1600 amps, the M16 Ni provides robust protection against overcurrents, ensuring the safe operation of electrical circuits.
3. Interrupting Capacity: The circuit breaker has a short-circuit interrupting capacity (Icw) of 40kA for 1 second. This high interrupting capacity helps in protecting the electrical system from severe fault conditions.
4. Standards Compliance: Compliant with IEC 947-2 standards, the Masterpact M16 Ni ensures reliable performance and safety in accordance with international regulations.
5. Motor Mechanism: The Mch-m motor mechanism allows for automated operation, enhancing the ease of use and control over the circuit breaker.
6. Voltage Ratings: The circuit breaker supports a control voltage range of IEC 200/240V AC at 50/60 Hz, offering flexibility for various control scenarios. It also includes a shunt trip (Mx-a) and closing release (Xf-e) feature for remote operation.
7. Breaker Accessory: The MP breaker accessory (Cat N°: 685 658) operates at 240V 60Hz 20Va, providing additional functionality and control options for the circuit breaker.
Benefits:
1. Reliable Protection: The high interrupting capacity and compliance with international standards make the Masterpact M16 Ni a dependable choice for protecting electrical systems from faults and overloads.
2. Versatile Applications: Suitable for a variety of industrial contexts, this circuit breaker can handle different voltage and current requirements, providing flexibility in its use.
3. Automated Control: The inclusion of a motor mechanism and remote operation features (shunt trip and closing release) allows for automated and remote control, enhancing convenience and safety.
4. Durability: Built with high-quality materials and designed to withstand high voltage and current levels, the M16 Ni offers long-lasting performance and reliability.
5. Installation and Maintenance: The Merlin Gerin/Schneider Masterpact M16 Ni Circuit Breaker is designed for easy installation and maintenance. It comes with clear instructions and markings to facilitate proper setup. Regular inspection and maintenance are recommended to ensure optimal performance and longevity.
Applications:
1. Industrial Plants: Ideal for protecting and controlling electrical systems in manufacturing and processing plants.
2. Commercial Buildings: Suitable for use in large commercial buildings where high voltage and current protection are required.
3. Infrastructure Projects: Used in critical infrastructure projects to ensure reliable electrical distribution and protection.
The Merlin Gerin/Schneider Masterpact M16 Ni Circuit Breaker is a reliable and versatile solution for managing electrical loads in various industrial and commercial applications. Its high voltage and current capacity, compliance with international standards, and automated control features make it a preferred choice for ensuring the safety and efficiency of electrical systems.
If you are interested in a similar high-performance circuit breaker, consider the Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker 1000V 50/60Hz , which offers exceptional protection and control for demanding electrical systems.
